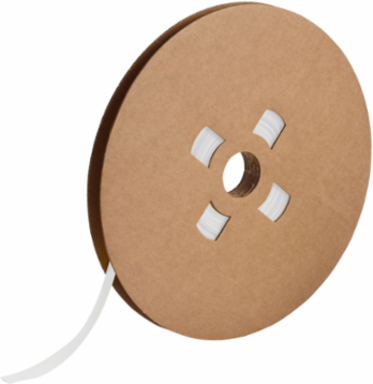

Brady PS-C-1000-WT-J PermaSleeve Polyolefin Wire Marking Sleeves, 1" Dia x 150' L, White
- MPN: PS-C-1000-WT-J
- UPC: 754473897567
- PPN: BRD-PS-C-1000-WT-J
- UNSPSC: 55121612
CAD
$1429.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Documentation & Downloads
Specifications
Key Specifications
| Applications | Wire and Cable Labeling |
|---|---|
| Color | White |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | BBP12; BBP72; i7100; i5100 |
| Ribbon Series | R4300 |
| Shrink Ratio | 3:1 |
| Total Qty per Pack | 1 Roll(s) / Roll |
| Adhesive (Y/N) | No |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-342 |
| Diameter as Supplied (mm/cm/m) | 25.4 mm |
| Dimensions (Metric) | 42.16 mm W x 42.2 mm H x 45.72 m L |
| Height (in/ft/yd) | 1.66 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.95 in |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.375 in |
| Recovered Diameter (in/ft/yd) | 0.375 in |
| Recovered Wall Thickness (in/ft/yd) | 0.035 in |
| Roll Length (in/ft/yd) | 150 ft |
| Size - Length (m) | 45.72 m |
| Sleeve Size (in/ft/yd) | 1 in Dia x 150 ft L |
| Wire Diameter Range | 0.375 in to 0.95 in |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | Method 215; Method 215K; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202; MIL-STD-202F; RoHS Compliant; UL 224 |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer |
| Primary Noun, Basic Function | Heat Shrink Tubing |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | BBP12; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100 |
| Recommended Ribbon | IP-R6606; R6606 |
| Shape | Continuous |
| Suggested Ribbon Series | R4300; R5000; R6600 |
| Trade Name | PermaSleeve® |
| Brady Material Number | B-342 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Smear-Resistant |
| Diameter as Supplied (in/ft/yd) | 1 in |
| Dimensions | 1.66 in H |
| Dimensions 2 | 1.66 in H |
| Height (mm/cm/m) | 42.2 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 24.13 mm |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 9.53 mm |
| Recovered Diameter (mm/cm/m) | 9.5 mm |
| Recovered Wall Thickness (mm/cm/m) | 0.89 mm |
| Roll Length (mm/cm/m) | 45.72 m |
| Size - Width (mm) | 42.16 mm |
| Sleeve Size (mm/cm/m) | 25.4 mm Dia x 45.72 m L |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer Causing Chemical | Antimony Trioxide |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
