Weidmuller 1288590000 PGK 4 BT BK
- MPN: 1288590000
- PPN: WDM-1288590000
CAD
$4.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

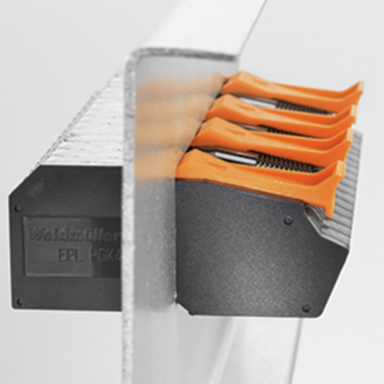

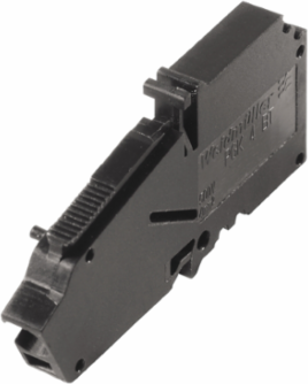

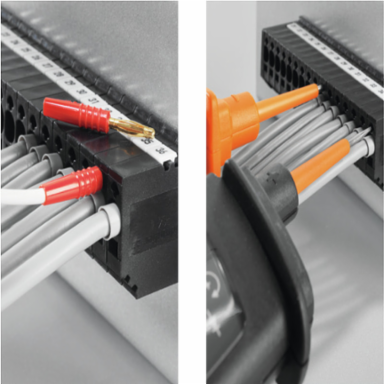

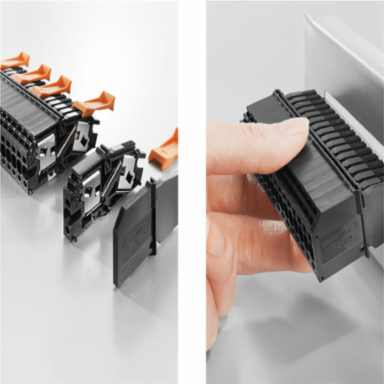

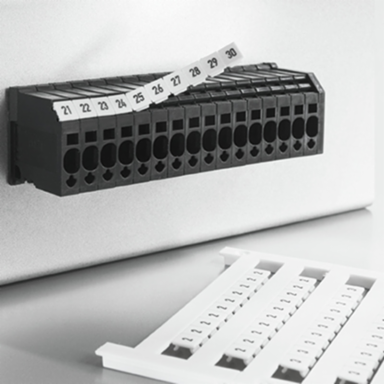

OMNIMATE Power - series PGK, Feed-through terminal, Rated cross-section: 4 mm², Wemid (PA), Direct mounting, Feed-through (bushing)
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group C / UL 1059)
- 30 A
- Wire cross-section, AWG, min.
- AWG 24
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)150 V
Rated current (Use group B / UL 1059)30 A
Rated current (Use group D / UL 1059)30 A
Wire cross-section, AWG, max.AWG 10
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform

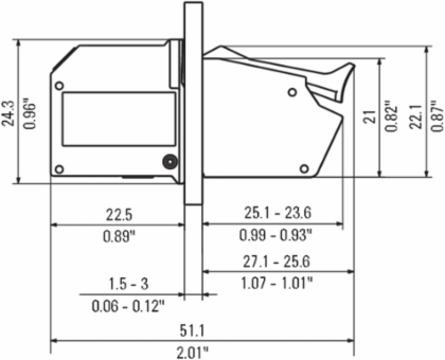

Dimensions And Weights
- Net weight
- 6.272 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 32 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 6 kV
Rated current, min. number of poles (Tu=20°C)32 A
Rated voltage for surge voltage class / pollution degree III/3500 V
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 9011
- Contact material
- E-Cu
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourblack
UL 94 flammability ratingV-0
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC001283
- eClass 9.0
- 27-14-11-34
- eClass 10.0
- 27-14-11-34
ETIM 7.0EC001283
eClass 9.127-14-11-34
System Parameters
- Product family
- OMNIMATE Power - series PGK
- Conductor outlet direction
- 180°
- Fitted by customer
- Yes
- Stripping length
- 12 mm
Wire connection methodPUSH IN
Number of poles1
Screwdriver blade0.4 x 2.5
Touch-safe protection acc. to DIN VDE 0470IP 20
Packing
- Packaging
- Box
- VPE width
- 110 mm
VPE length90 mm
VPE height180 mm
Notes
- Notes

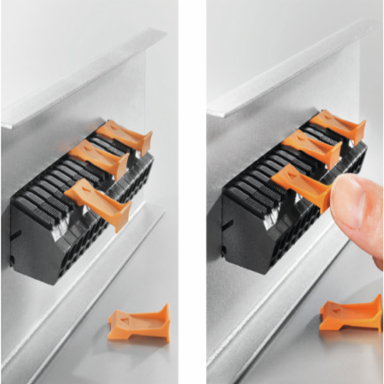

- Packing unit incl. 30 locking elements (VREL PGK 4 OR – 1288610000) End plate required Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Colours: SW = black; GN/YL = green/yellow; GY = grey Additional colours on request
Conductors Suitable For Connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 24
- Solid, min. H05(07) V-U
- 0.5 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.5 mm²
- Max. clamping range
- 4 mm²
Clamping range, max.4 mm²
Wire connection cross section AWG, max.AWG 10
Solid, max. H05(07) V-U4 mm²
Flexible, max. H05(07) V-K4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.4 mm²
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated voltage (Use group D / CSA)
- 300 V
- Rated current (Use group C / CSA)
- 30 A
- Wire cross-section, AWG, min.
- AWG 24
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-70000589
Rated voltage (Use group C / CSA)150 V
Rated current (Use group B / CSA)30 A
Rated current (Use group D / CSA)30 A
Wire cross-section, AWG, max.AWG 10
