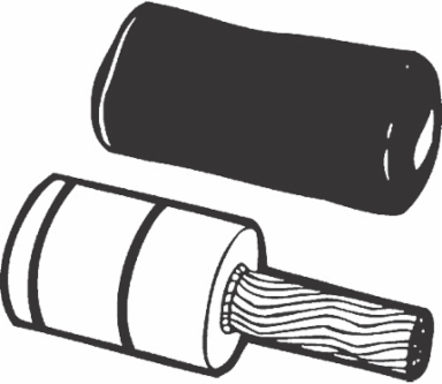

Blackburn PA25 Aluminum Pin Adapter 250 kcmil with Tinned Surface, UL Standard
- MPN: PA25
- UPC: 783786134083
- PPN: T-B-PA25
CAD
$86.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Pin Adapter Terminal, Wire Size 250 kcmil, Tin Plated, Die Color Code Brown
Features
- Connector for aluminum conductor only. Pigtail may be inserted into either aluminum or copper connectors.
- Tin-plated stranded copper wire pigtail.
- Tin-plated aluminum barrel prefilled with oxide inhibitor and capped.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| Brand Name | Blackburn |
| Special Features | Connector for aluminum conductor only. Pigtail may be inserted into either aluminum or copper connectors. |
| Cable Size | 250 kcmil |
| Color | Brown |
| IGCC | 4532 Cable or wire lug |
|---|---|
| Type | Pin Adapter |
| Standard | UL E63167 |
| Material | Aluminum |
Packaging
| Inner Quantity | 10 |
|---|---|
| Outer Quantity | 100 |
| Weight Uom | 40 lbs. per 100 |
| Inner Dimensions (inches) | 6.75x5.25x3.7 |
|---|---|
| Outer Dimensions (inches) | 20.6x11.25x7.9 |
European Specifications (ETIM)
| ETIM | EC001052 Solderless copper terminals for copper conductors |
|---|---|
| Colour insulation | Other |
| Material | Other |
| Flange shape | Pin shape |
|---|---|
| Reel packaging | N |
| Surface protection | Tinned |
