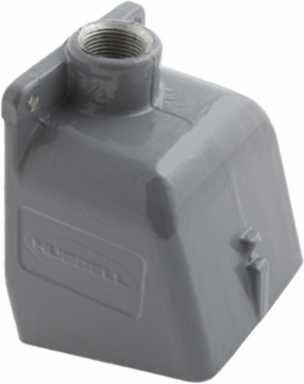

Hubbell Wiring Device-Kellems BB1001W Industrial Grade Angled Back Box for 100A 1-1/2 Inch NPT Hub, Aluminum
- MPN: BB1001W
- UPC: 783585390826
- PPN: HBL-BB1001W
- UNSPSC: 39121332
CAD
$448.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessory, Back Box, For 100A 1 1/2" NPT Hub, Angled, Mounting ScrewsIncluded, Gray Cast Aluminum
Features
- Industrial Grade
- Back Box
- For 100A 1 1/2" NPT Hub
- Standard Product
Specifications
Key Specifications
- General Literature Asset 2 Display Text
- Hubbell Marine Full Line Catalog
- Country of Origin
- China
- Industry Standard(s)
- UL Raintight and External Icing Test
- Application
- Metallic
- Color
- Aluminum
- Number of Outlet
- Accepts 1-Device
- Standard
- UL Raintight and External Icing Test
- Type
- Angled Back Box
- Display Size
- For 100 and 125 Amp Devices
- Style
- 15 Degree
- Description - Invoice
- PS, IEC, ANG BOX, 100A, 1 1/2", ALU
- Harmonization Code
- 7616999999
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 39.85 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Width6.500 in
PerformanceEnvironmental - Moisture Resistance - IP67 Suitability
Cable EntryThrough Hub
Knockouts1 1/2" NPT Hub
Special FeaturesStandard Product
Temperature RangeLimited By Device
General Literature Asset 1 Display TextHubbell PRO Pin & Sleeve Brochure
Number Of OutletsAccepts 1-Device
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
ConstructionCast
SeriesBack Boxes and Adapters
BOX SIZE9.400x7.700x6.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585390826
Case Weight2.834 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
