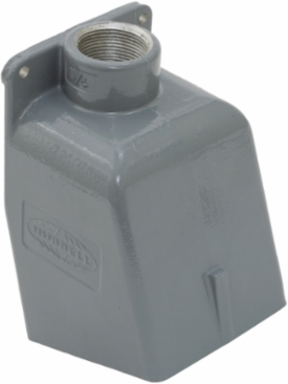

Hubbell Wiring Device-Kellems BB602W Angled Back Box for 60A 1-1/2 Inch NPT Hub, Aluminum
- MPN: BB602W
- UPC: 783585390727
- PPN: HBL-BB602W
- UNSPSC: 39121332
CAD
$221.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessory, Back Box, For 60A 1 1/2" NPT Hub, Angled, Mounting ScrewsIncluded, Gray Cast Aluminum
Features
- Industrial Grade
- Back Box
- For 60A 1 1/2" NPT Hub
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Raintight and External Icing Test
- Standards - RoHS Compliance Status
- CM
- Cable Entry
- Through Hub
- Knockouts
- 1 1/2" NPT Hub
- Special Features
- Standard Product
- Temperature Range
- Limited By Device
- General Literature Asset 1 Display Text
- Dual-Certified IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Number Of Outlets
- Accepts 1-Device
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A180
- Construction
- Cast
- Series
- Back Boxes and Adapters
- BOX SIZE
- 6.400x9.200x7.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585390727
- Case Weight
- 2.761 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.800 in
- Pallet Weight
- 500.500 lb.
- NAICS Code
- 3359326103
Width7.600 in
PerformanceEnvironmental - Moisture Resistance - IP67 Suitability
ApplicationMetallic
ColorAluminum
Number of OutletAccepts 1-Device
StandardUL Raintight and External Icing Test
TypeAngled Back Box
General Literature Asset 2 Display TextIEC Pin & Sleeve Devices
Display SizeFor 60 and 63 Amp Devices
Style15 Degree
Description - InvoicePS, IEC, ANG BOX, 60A, 1 1/2"; ALU
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareMounting Screws
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.696 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585390726
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
