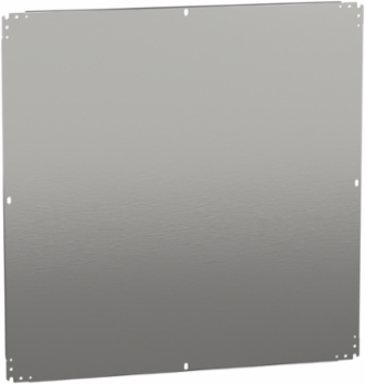

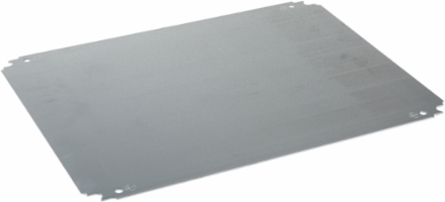

Schneider Electric NSYMM1010 Galvanised Steel Mounting Plate 1000x1000mm 180kg Load
- MPN: NSYMM1010
- PPN: SCH-NSYMM1010
CAD
$235.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is1000 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Set of 1.
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Nominal Dimensions
- H: 1000 mm W: 1000 mm
- Material
- galvanised steel
- Quantity Per Set
- set of 1
- Device Application
- multi-purpose
- Range
- Spacial
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Product Or Component Typemounting plate
Mounting Plate Descriptionplain
Mounting Locationstep slide || direct fixing on backstuds
Complementary
- Width
- 950 mm
- Thickness
- 1.8 mm
- Fixing Mode
- screwed on backstuds M8 || by fixing element
Height950 mm
Net Weight18.1 kg
Permanent Permissible Load180 kg
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
