Schneider Electric NSYMM1210 Plain Mounting Plate 1200x1000 mm Galvanised Steel, 180 kg Load Capacity

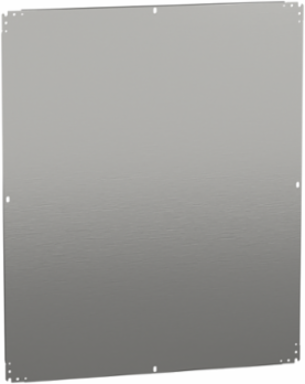

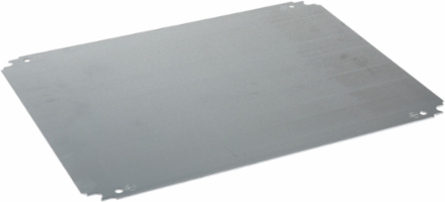

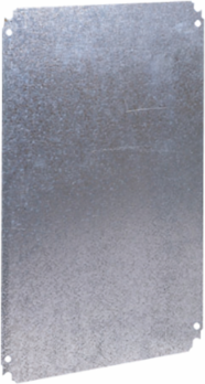

Plain Mounting Plate 1200x1000 mm Galvanised Steel, 180 kg Load Capacity
  • MPN: NSYMM1210
  • PPN: SCH-NSYMM1210

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$232.00/ EA

    Description

    Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1200 x W is1000 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.

    Specifications

    Specifications

    Enclosure Nominal Dimensions
    H: 1000 mm W: 1200 mm || - H: 1200 mm W: 1000 mm
    Material
    galvanised steel
    Quantity Per Set
    set of 1
    Device Application
    multi-purpose
    Range
    Spacial
    Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
    Accessory / Separate Part Categorymounting accessory
    Product Or Component Typemounting plate
    Mounting Plate Descriptionplain
    Mounting Locationstep slide || direct fixing on backstuds

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2202003EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Contractual warranty

    Warranty
    18 months

    Complementary

    Width
    950 mm
    Variant Particularity
    installation in enclosures with inverted dimensions
    Net Weight
    21.884 kg
    Permanent Permissible Load
    180 kg
    Height1150 mm
    Thickness1.8 mm
    Fixing Modescrewed on backstuds M8 || by fixing element
