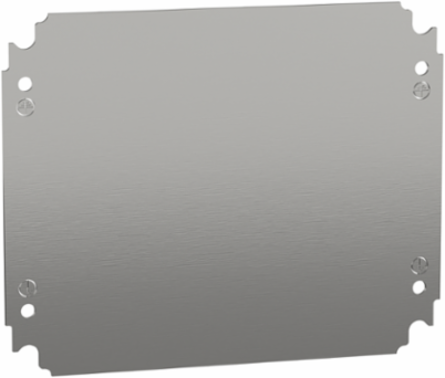

Schneider Electric NSYMM3025 Plain Mounting Plate 300mm x 250mm Galvanised Steel, 60kg Load

Plain Mounting Plate 300mm x 250mm Galvanised Steel, 60kg Load
  • MPN: NSYMM3025
  • PPN: SCH-NSYMM3025

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$9.51/ EA

    Description

    Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is300 x W is250 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Set of 1.

    Specifications

    Complementary

    Width
    200 mm
    Thickness
    1.8 mm
    Fixing Mode
    screwed on backstuds M8 || by fixing element
    Height250 mm
    Net Weight0.706 kg
    Permanent Permissible Load60 kg

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2202003EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Specifications

    Enclosure Nominal Dimensions
    H: 300 mm W: 250 mm
    Material
    galvanised steel
    Quantity Per Set
    set of 1
    Device Application
    multi-purpose
    Range
    Spacial
    Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
    Accessory / Separate Part Categorymounting accessory
    Product Or Component Typemounting plate
    Mounting Plate Descriptionplain
    Mounting Locationstep slide || direct fixing on backstuds

    Contractual warranty

    Warranty
    18 months
