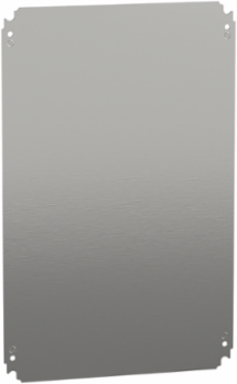

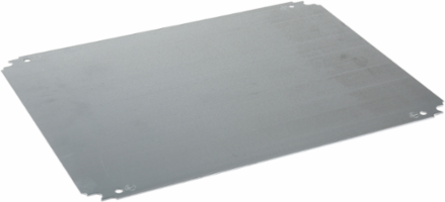

Galvanised Steel Mounting Plate 600x400mm, 90kg Load Capacity
Schneider Electric

Schneider Electric NSYMM64 Galvanised Steel Mounting Plate 600x400mm, 90kg Load Capacity

  • MPN: NSYMM64
  • PPN: SCH-NSYMM64
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $28.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is600 x W is400 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 90 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.

    Documentation & Downloads

    Specifications

    Key Specifications

    Enclosure Nominal Dimensions
    H: 600 mm W: 400 mm
    Material
    galvanised steel
    Quantity Per Set
    set of 1
    Device Application
    multi-purpose
    Range
    Spacial
    Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
    Accessory / Separate Part Categorymounting accessory
    Product Or Component Typemounting plate
    Mounting Plate Descriptionplain
    Mounting Locationdirect fixing on backstuds || step slide

    Complementary

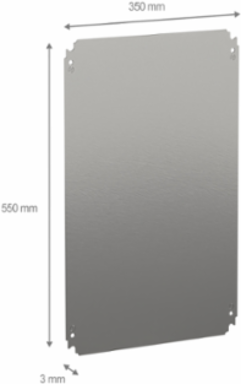

    Width
    350 mm
    Variant Particularity
    installation in enclosures with inverted dimensions
    Net Weight
    2.86 kg
    Permanent Permissible Load
    90 kg
    Height550 mm
    Thickness1.8 mm
    Fixing Modescrewed on backstuds M8 || by fixing element

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2202003EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes
