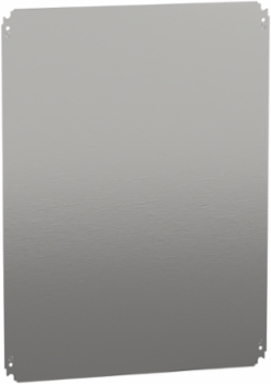

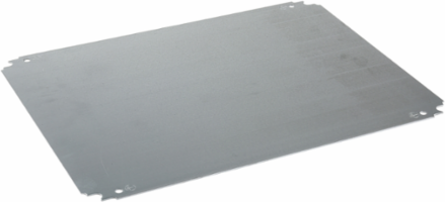

Schneider Electric NSYMM86 Plain mounting plate H800xW600mm made of galvanised sheet steel

Plain mounting plate H800xW600mm made of galvanised sheet steel
  • MPN: NSYMM86
  • PPN: SCH-NSYMM86

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$69.54/ EA

    Description

    Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is600 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel. Set of 1. Variant particularity is with enclosures H800 x W1200.

    Specifications

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2202003EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Circularity Profile
    N/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Variant Particularity
    with enclosures H800 x W1200
    Net Weight
    8.07 kg
    Permanent Permissible Load
    135 kg
    Height
    750 mm
    Thickness2.5 mm
    Fixing Modescrewed on backstuds M8 || by fixing element
    Width550 mm

    Overview

    Lead Time
    Usually Ships within 4 Weeks

    Specifications

    Enclosure Nominal Dimensions
    H: 800 mm W: 600 mm
    Accessory / Separate Part Category
    mounting accessory
    Range
    Spacial
    Material
    galvanised steel
    Device Application
    multi-purpose
    Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
    Product Or Component Typemounting plate
    Mounting Locationstep slide || direct fixing on backstuds
    Quantity Per Setset of 1
    Mounting Plate Descriptionplain
