Schneider Electric NSYSCCDINLG140 Set of 10 cable supports made of plastic, length 140mm.

MPN: NSYSCCDINLG140
PPN: SCH-NSYSCCDINLG140

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$24.88/ EA

Qty:

Loading add to cart quantity...

Description

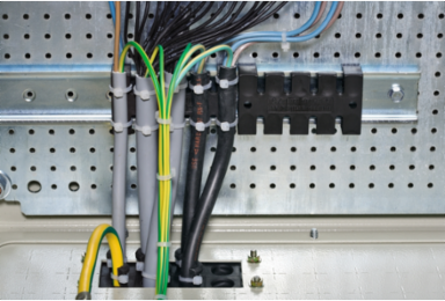

Set of 10 plastic cable supports for use in PanelSeT enclosures. The cable support is 140mm of length and allows to fasten 9 cables maximum using cable ties. Fixed on 35mm symmetric rails or a C-shaped rail by means of clips or screws. Depth is 50mm. Height is 40mm. Net weight is 0.32kg.

Specifications

Important Information Attributes

Persona Type Ids: LC, OM, OM8, PB, SI

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Fixing Mode: by screws, clipped

Local Publishable Date: 2026-04-13

Stocking Flag: Y

Weee Scope: Out

Eoli Availability Display: No need of specific recycling operations

Reach Full Compliance Status Id: NOT_CONTAINING_SVHC

Rohs Eur In Scope: No

Rohs Eur Conformity Date: 1926

China Rohs In Scope: No

With Recycled Cardboard: No

Product Contributes To Saved And Avoided Emissions: No

Tier: 2

Function Option: Standard

Device Application: multi-purpose

Energy Efficiency Optimized: False

Mounting Support: cable tie, fasten 9 cables maximum

Product Or Component Type: support

Range: PanelSeT

Sustainable Packaging: No

Warranty In Months: 18

Offer Owner Code: 190789

Height Nominal: 40 mm

Length Total: 140 mm

Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator

Market SegmentationCommercial, Industrial

Local Data StatusPublishable

Return IndicatorN

Stock Policy2

Scope PerimeterAt least in Europe

Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold

Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant

Rohs Eur Full Compliance StatusCompliant

China Rohs Label1

Without Single Use PlasticNo

Tier Id2

Function Option IdSTANDARD

Product Kit IdentifierN

Device Composition1 cable support

Mounting Locationon 35 mm symmetric rails or a C-shaped rail

Product AvailabilityNon-Stock - Not normally stocked in distribution facility

Quantity Per Setset of 10

ReturnabilityNo

Accessory Separate Part Categorycable management accessory

Pep CodeENVPEP1001004EN

Pn1

Height Useful40 mm

Length Useful140 mm

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)

Reach Free Shvc: Yes

Toxic Heavy Metal Free: Yes

Environmental Disclosure: ENVPEP1001004EN

Packaging Made With Recycled Cardboard: No

Reach Free Of Svhc: Yes

Pep Code: ENVPEP1001004EN

Take BackNo

Recycled Metal Content At Cr Level0 %

Mercury FreeYes

Eu Rohs DirectiveCompliant

Packaging Without Single Use PlasticNo

Reach RegulationFree of Substances of Very High Concern above the threshold

General Attributes

Product Or Component Type: support

ETIM

ETIM 8: EC002620

ETIM 9EC002620

Contractual Warranty Attributes

Warranty Period: 18 months

Warranty18 months

Specifications

Country of Origin: France

Length: 5.51 in

Height1.57 in

Depth50 mm

Downloads
