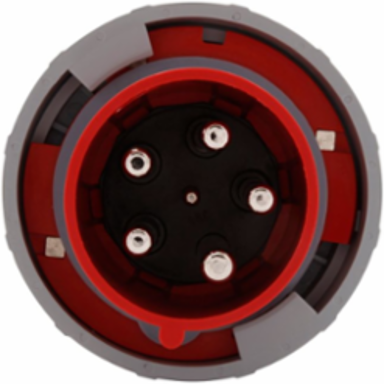

Eaton AH5100P7W Eaton Arrow Hart pin and sleeve plug — Amperage Rating: 100A, Number Of Wires: 5 Grounding
- MPN: AH5100P7W
- UPC: 040893620657
- PPN: COW-AH5100P7W
CAD
$486.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve plug, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3ØY 277/480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, 0.97-1.94in (2.46-5.00cm), Male, 20 HP, Nylon, 3PH
Specifications
Key Specifications
| Length | 13.375 in |
|---|---|
| Width | 5.5 in |
| Product Type | Pin and Sleeve plug |
| Amperage Rating | 100A |
| Application | Industrial, food and beverage, wastewater treatment |
| Number Of Poles | Four-pole |
| Phase | Three-phase |
| Horsepower | 20 hp |
| Torque Rating | 70 lbf-inch |
| Face/Body Material | Nylon |
| Height | 5.625 in |
|---|---|
| Weight | 3.392 lbs |
| Type | Plug |
| Contact Material | Nickel plated brass |
| Number Of Wires | 5 Grounding |
| Cord Diameter | 0.97-1.94in (2.46-5.00cm) |
| Gender | Male |
| Allowable Wire Size | #4 -1/0 AWG, #12-16 AWG (pilot) |
| Design Type | Pin and sleeve plug |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
