Brady 113233 Plug Valve Lockouts 4 in H x 4.71 in Dia, Red Polypropylene
- MPN: 113233
- UPC: 754473176662
- PPN: BRD-113233
- UNSPSC: 39121909
CAD
$60.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

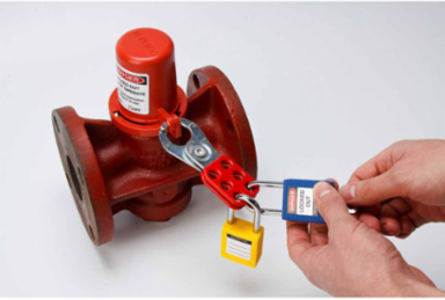

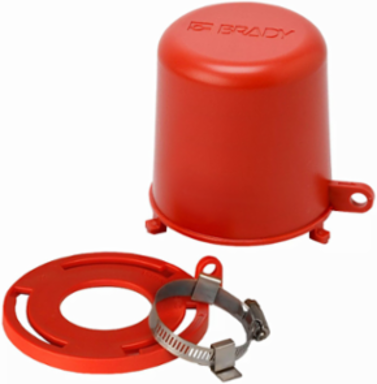

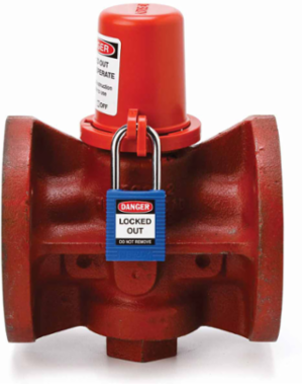

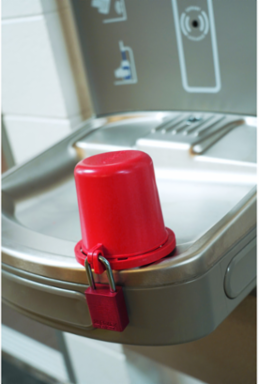

Easily and effectively secure manually-actuated plug valves and drinking fountain spouts with a stem diameter ranging from 1-1/2 to 2-1/8" with this innovative, first-of-its-kind lockout device.
Features
- The base of the lockout device can remain in place once applied, and does not interfere with valve activation by wrench or removable handle
- Keep hands off of a high-touch area with this visual reminder and physical barrier
- Made of durable polypropylene and tamper-resistant
- Compact in size, yet highly-visible and easy to use
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time and cut insurance costs
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Maximum Number of Padlocks
- 1
- Risk Type
- Mechanical Risk
- Total Qty per Pack
- 1 Piece(s) / Pack
- Brady Material Number
- LOTO-52
- Material
- Polypropylene
- Diameter (mm/cm/m)
- 119.63 mm
- Dimensions (Metric)
- 101.60 mm H x 119.63 mm Dia
- Height (mm/cm/m)
- 101.60 mm
- Maximum Service Temperature °F
- 175 °F
- Maximum Shackle Diameter (mm/cm/m)
- 9.40 mm
- Maximum Stem Diameter (mm/cm/m)
- 53.98 mm
- Minimum Service Temperature °F
- 0 °F
- Minimum Stem Diameter (mm/cm/m)
- 38.1 mm
- Service Temperature Range °F
- 0 °F to 175 °F
- Stem Diameter Range (in/ft/yd)
- 1.50 in to 2.125 in
ColorRed
LanguageEnglish
Primary Noun, Basic FunctionLockout Device
Text LegendDANGER LOCKED OUT DO NOT OPERATE
Adhesive (Y/N)No
Lockout MaterialPolypropylene
Diameter (in/ft/yd)4.71 in
Dimensions4 in H x 4.71 in Dia
Height (in/ft/yd)4 in
Maximum Service Temperature °C80 °C
Maximum Shackle Diameter (in/ft/yd)0.37 in
Maximum Stem Diameter (in/ft/yd)2.125 in
Minimum Service Temperature °C-20 °C
Minimum Stem Diameter (in/ft/yd)1.50 in
Service Temperature Range °C-20 °C to 80 °C
Sign Size-General4.71 in Dia
Stem Diameter Range (mm/cm/m)38.1 mm to 53.98 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- Contains 3TG Mineral
- No-Does Not Contain
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
