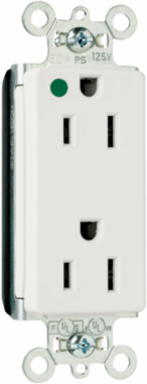

Pass & Seymour PT26262HGI PlugTail Hospital Grade Receptacle 15A 125V Ivory 2.75 Inch Height 1.5 Inch Width
- MPN: PT26262HGI
- UPC: 785007309683
- PPN: P-S-PT26262HGI
CAD
$43.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail Hospital Grade Receptacle 15A 125V Ivory 2.75 Inch Height 1.5 Inch Width
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.625 in
- Height
- 2.75 in
- Amperage
- 15.0 A
- Standard
- UL 498
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Features
- Decorator Style
- Outlet Type
- Hospital Grade
- Number of Poles
- Double Pole
- Application Sector
- Healthcare
- NEMA Configuration Code
- 5-15R
- Operating Temperature Max
- 60.0 °C
- Color
- Ivory
- Operating Temperature
- -40°-60°C
- Special Features
- Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
PhaseThree
Width1.5 in
Country of OriginMexico
Voltage125.0 V
Wire Size12 AWG
Indoor/OutdoorIndoor
Number of Receptacles2.0
Outlet TypeStraight Blade
Application SectorCommercial
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Min-40.0 °C
Product LinePass & Seymour
FeaturesSingle Piece Plated Steel Mounting Strap
