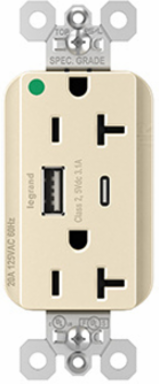

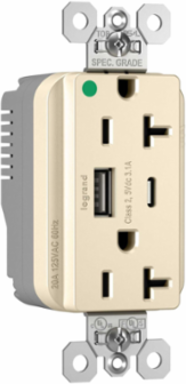

Pass & Seymour PTTR20HACUSBLA PlugTail® 20A Hospital-Grade USB Outlet, Light Almond, 2.68 x 1.69 x 1.45 Inch
- MPN: PTTR20HACUSBLA
- UPC: 785007113426
- PPN: P-S-PTTR20HACUSBLA
CAD
$99.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail® Hospital Grade USB Charging Receptacles provide the convenience of mobile charging without the need for a bulky AC adapter. This device is a perfect match for the constant needs of todays mobile environment and is rugged enough to withstand hard-use commercial applications. It comes equipped with two UL Fed Spec AC receptacles and two USB charging ports for mobile devices one Type-A port and one Type-C port for newer products. An efficient, 15.5W power supply provides all power needed for charging mobile phones and tablets. The PlugTail® termination provides a more productive, secure, and safer installation and allows you to connect with the future of wiring device innovations. For detailed PlugTail® information, visit our PlugTail® Headquarters. PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- AC receptacles are tamper resistant as standard : patented shutter system prevents improper insertion of foreign objects
- Extra heavy-duty 0.050'' thick brass mounting strap for superior performance and durability.
- Triple-wipe, brass line contacts for 20A commercial applications
- Multiple color options available
- Zinc-plated steel for corrosion resistance
- 5Vdc Type-C USB port to charge USB Type-C compatible mobile devices
- Stainless steel auto-ground clips assure positive ground
- Available in 15 & 20A, Specification Grade and Hospital Grade configurations
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.45 in
- Height
- 2.677 in
- Width
- 1.693 in
- Country of Origin
- China
- USB Amperage
- 3.1 A
- Number of Wires
- 3.0
- Wall Plate Included
- No
- Features
- USB-C Charging
- Outlet Type
- USB-Charging
- Number of Poles
- Double Pole
- Application Sector
- Healthcare
- Wire Connection Type
- PlugTail
- Color
- Light Almond
Amperage20.0 A
Voltage125.0 V
StandardFEDSPEC
Number of USBs2.0
USB Wattage15.0 W
Indoor/OutdoorIndoor
FeaturesUSB-A Charging
Is Tamper-ResistantYes
Number of Receptacles2.0
Application SectorCommercial
Connection LocationBack Only
Warranty Type1-Year Limited Warranty
Product LinePass & Seymour
