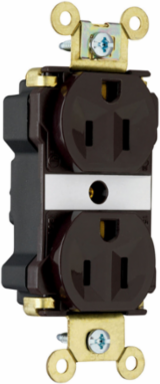

Pass & Seymour PT5262A PlugTail Industrial Heavy Duty Receptacle, 15A, 125V, Brown, 2.75 Inch Height
- MPN: PT5262A
- UPC: 785007860139
- PPN: P-S-PT5262A
- UNSPSC: 39121406
CAD
$41.79
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail Industrial Heavy Duty Receptacle, 15A, 125V, Brown, 2.75 Inch Height
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.75 in |
| Color | Brown |
| Amperage | 15.0 A |
| Environmental Conditions | Flammability: UL94 V2 |
| Dielectric Strength | Withstands 2000V minimum |
| Standard | cULus UL498; FEDSPEC |
| Application Sector | Commercial; Industrial |
| Voltage | 125.0 V |
| NEMA Configuration Code | 5-15R |
| Number of Receptacles | 2.0 |
| Warranty Type | 1-Year Limited Warranty |
| Indoor/Outdoor | Indoor |
| Connection Location | Back Only |
| Depth | 0.866 in |
|---|---|
| Width | 1.625 in |
| Product Line | Pass & Seymour |
| Number of Poles | Double Pole |
| Special Features | Exclusive patented feature, circuit label on face allows permanent circuit identification. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground. |
| Number of Wires | 3.0 |
| Wire Size | 12 AWG |
| Features | Single Piece Plated Steel Mounting Strap |
| Wall Plate Included | No |
| Outlet Type | Straight Blade |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Wire Connection Type | PlugTail |
| Operating Temperature | -40°-60°C |
