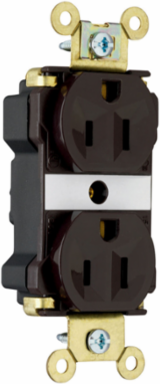

Pass & Seymour PT5262ABK PlugTail® Industrial Receptacle 15A 125V Black, 2.75 Inch Height
- MPN: PT5262ABK
- UPC: 785007860146
- PPN: P-S-PT5262ABK
- UNSPSC: 39121406
CAD
$41.79
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail® Industrial Receptacle 15A 125V Black, 2.75 Inch Height
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.75 in |
| Color | Black |
| Amperage | 15.0 A |
| Phase | Three |
| Number of Wires | 3.0 |
| Wire Size | 12 AWG |
| Wall Plate Included | No |
| Outlet Type | Straight Blade |
| Number of Receptacles | 2.0 |
| Operating Temperature Max | 60.0 °C |
| Connection Location | Back Only |
| Wire Connection Type | PlugTail |
| Application Sector | Commercial; Industrial |
| Depth | 0.866 in |
|---|---|
| Width | 1.625 in |
| Product Line | Pass & Seymour |
| Number of Poles | Double Pole |
| Special Features | Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts |
| Standard | UL 498; FEDSPEC |
| Operating Temperature | -40°-60°C |
| Features | Single Piece Plated Steel Mounting Strap |
| Voltage | 125.0 V |
| Warranty Type | 1-Year Limited Warranty |
| NEMA Configuration Code | 5-15R |
| Indoor/Outdoor | Indoor |
| Operating Temperature Min | -40.0 °C |
