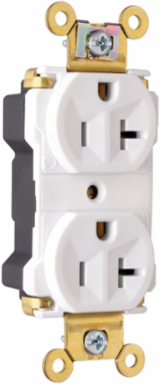

Pass & Seymour PT5362AW PlugTail 20A 125V Duplex Receptacle, White, 0.86 Inch Depth, 2.75 Inch Height, Matte Finish
- MPN: PT5362AW
- UPC: 785007860443
- PPN: P-S-PT5362AW
CAD
$42.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail® Industrial Extra Heavy-Duty Spec Grade Receptacles, 20A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Illuminated face indicates power to receptacle and makes it easy to identify receptacle in dark applications.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
| Depth | 0.86 in |
|---|---|
| Amperage | 20.0 A |
| Width | 1.625 in |
| Standard | FEDSPEC |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Industrial |
| NEMA Configuration Code | 5-20R |
| Warranty Type | 1-Year Limited Warranty |
| Color | White |
| Product Line | Pass & Seymour |
| Operating Temperature | -40°-60°C |
| Features | Single Piece Plated Steel Mounting Strap |
| Height | 2.75 in |
|---|---|
| Voltage | 125.0 V |
| Country of Origin | Mexico |
| Wire Size | 12 AWG |
| Standard | cULus UL498 |
| Wall Plate Included | No |
| Outlet Type | Straight Blade |
| Application Sector | Commercial |
| Connection Location | Back Only |
| Wire Connection Type | PlugTail |
| Operating Temperature Max | 60.0 °C |
| Finish | Matte |
| Operating Temperature Min | -40.0 °C |
| Dielectric Strength | Withstands 2000V minimum |
