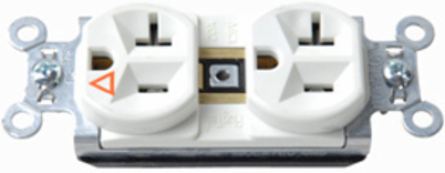

Pass & Seymour PTIG5362W PlugTail Isolated Ground Receptacle, 20A, 125V, White, 2.75 Inch Height
Pass & Seymour PTIG5362W PlugTail Isolated Ground Receptacle, 20A, 125V, White, 2.75 Inch Height
- MPN: PTIG5362W
- UPC: 785007307696
- PPN: P-S-PTIG5362W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$31.39/ EA
Description
PlugTail® Isolated Ground Spec Grade Duplex Receptacle 20 A 125 V
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Height
- 2.75 in
- Product Line
- Pass & Seymour
ColorWhite
Width1.5 in
Country of OriginMexico
