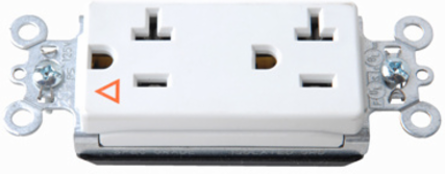

Pass & Seymour PTIG26362W Isolated Ground Decorator Receptacle, 20A, 125V, 1.5 Inch Width, White
Pass & Seymour PTIG26362W Isolated Ground Decorator Receptacle, 20A, 125V, 1.5 Inch Width, White
- MPN: PTIG26362W
- UPC: 785007307825
- PPN: P-S-PTIG26362W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$42.85/ EA
Description
PlugTail® Isolated Ground Decorator Spec Grade Receptacles, 20A, 125A
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
Specifications
- Depth
- 0.625 in
- Height
- 3.281 in
- Color
- White
- Product Line
- Pass & Seymour
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Features
- Single Piece Plated Steel Mounting Strap
PhaseThree
Width1.5 in
Country of OriginMexico
Amperage20.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles2.0
Outlet TypeIsolated Ground
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Special FeaturesPlated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
