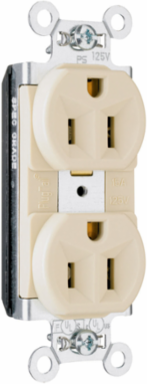

Pass & Seymour PT5262RED PlugTail® 15A 125V Spec-Grade Duplex Receptacle, Red, 1.322 Inch Width, 2.635 Inch Height
- MPN: PT5262RED
- UPC: 785007091632
- PPN: P-S-PT5262RED
CAD
$22.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail® Spec Grade Receptacles, 15A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Illuminated face indicates power to receptacle and makes it easy to identify receptacle in dark applications.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Red
- Width
- 1.322 in
- Phase
- Three
- Standard
- UL 498
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Wall Plate Included
- No
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-15R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Features
- Single Piece Plated Steel Mounting Strap
Height2.635 in
Product LinePass & Seymour
Country of OriginMexico
Amperage15.0 A
Voltage125.0 V
Wire Size12 AWG
Indoor/OutdoorIndoor
Number of Receptacles2.0
Number of PolesDouble Pole
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Special FeaturesPlated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
