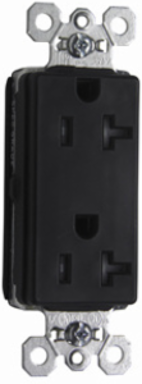

Pass & Seymour PTTR26362BK PlugTail® 20A 125V Tamper-Resistant Decorator Duplex Receptacle, Black, 1.5 Inch Width, 2.75 Inch Height, 0.875 Inch Depth
Pass & Seymour PTTR26362BK PlugTail® 20A 125V Tamper-Resistant Decorator Duplex Receptacle, Black, 1.5 Inch Width, 2.75 Inch Height, 0.875 Inch Depth
- MPN: PTTR26362BK
- UPC: 785007001709
- PPN: P-S-PTTR26362BK
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$33.90/ EA
Description
PlugTail® Tamper-Resistant Decorator Spec Grade Receptacle, 20A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger-safe application before, during and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger-safe housing.
- Crimped and welded contacts.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Prewired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
Specifications
Specifications
- Depth
- 0.875 in
- Amperage
- 20.0 A
- Width
- 1.5 in
- Voltage
- 125.0 V
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Is Tamper-Resistant
- Yes
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Color
- Black
- Special Features
- Auto ground clip, circuit label on face, two drive screws anchor, tamper resistant
Height2.75 in
StandardUL 498
Country of OriginMexico
StandardFEDSPEC
Number of Phases3.0
Wall Plate IncludedNo
FeaturesDecorator Style
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Product LinePass & Seymour
