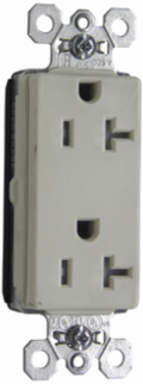

Pass & Seymour PTTR26362LA PlugTail 20A 125V Tamper-Resistant Decorator Duplex Receptacle, Light Almond, 2.75 Inch Height, 1.5 Inch Width
- MPN: PTTR26362LA
- UPC: 785007001846
- PPN: P-S-PTTR26362LA
CAD
$35.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail® Tamper-Resistant Decorator Spec Grade Receptacle, 20A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger-safe application before, during and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger-safe housing.
- Crimped and welded contacts.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Prewired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.875 in
- Height
- 2.75 in
- Standard
- UL 498
- Voltage
- 125.0 V
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Is Tamper-Resistant
- Yes
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Color
- Light Almond
- Product Line
- Pass & Seymour
Amperage20.0 A
Width1.5 in
Country of OriginMexico
StandardFEDSPEC
Number of Phases3.0
Wall Plate IncludedNo
FeaturesDecorator Style
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FinishMatte
