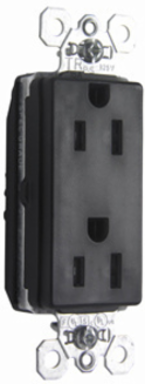

Pass & Seymour PTTR26262BK PlugTail 15A 125V Tamper-Resistant Duplex Receptacle, Black, 2.75 Inch Height
- MPN: PTTR26262BK
- UPC: 785007001761
- PPN: P-S-PTTR26262BK
CAD
$32.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail® Tamper-Resistant Decorator Spec Grade Receptacle, 15A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 0.875 in |
|---|---|
| Amperage | 15.0 A |
| Width | 1.5 in |
| Country of Origin | Mexico |
| Wire Size | 12 AWG |
| Indoor/Outdoor | Indoor |
| Is Tamper-Resistant | Yes |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Wire Connection Type | PlugTail |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Min | -40.0 °C |
| Color | Black |
| Product Line | Pass & Seymour |
| Height | 2.75 in |
|---|---|
| Standard | UL 498 |
| Voltage | 125.0 V |
| Standard | FEDSPEC |
| Number of Wires | 3.0 |
| Wall Plate Included | No |
| Features | Decorator Style |
| Outlet Type | Straight Blade |
| Outlet Type | Tamper-Resistant |
| NEMA Configuration Code | 5-15R |
| Connection Location | Back Only |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature | -40°-60°C |
| Finish | Matte |
