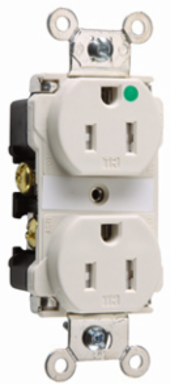

Pass & Seymour TR62HLA Tamper-Resistant Hospital Grade Receptacles, Smooth Face, Back and Side Wire, 15A, 125V, Light Almond
Pass & Seymour TR62HLA Tamper-Resistant Hospital Grade Receptacles, Smooth Face, Back and Side Wire, 15A, 125V, Light Almond
- MPN: TR62HLA
- UPC: 785007266993
- PPN: P-S-TR62HLA
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$75.46/ EA
Description
Tamper-Resistant Hospital Grade Receptacles, Smooth Face, Back and Side Wire, 15A, 125V, Light Almond
Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
- Smooth face.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- Extra heavy-duty brass, one-piece mounting strap with integral ground.
- One-piece, nickel-plated brass, triple-wipe power contacts for lasting retention.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Impact-resistant nylon face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Two drive screws anchor strap to back body and face.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
Specifications
- Depth
- 0.9 in
- Phase
- Three
- Width
- 1.625 in
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Product Line
- Pass & Seymour
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
Height2.75 in
Amperage15.0 A
Country of OriginMexico
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Outlet TypeHospital Grade
Outlet TypeTamper-Resistant
Application SectorHealthcare
NEMA Configuration Code5-15R
ColorLight Almond
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Special FeaturesSurge protective, corrosion resistant, led indication, back & side wire
