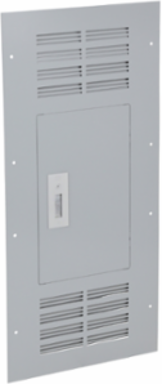

Square D NC50VS3P Ventilated Steel Panelboard Cover, 20 Inch W x 50 Inch H, NEMA 1
Square D NC50VS3P Ventilated Steel Panelboard Cover, 20 Inch W x 50 Inch H, NEMA 1
- MPN: NC50VS3P
- PPN: SCH-NC50VS3P
- UNSPSC: 39121302
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$476.60/ EA
Description
NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure cover is a ventilated steel Type 1 with 3 point latch for surface mount NF and NQ panelboards. This cover is for a 20 inch width x 50 inch height box. NQ and NF enclosures are UL listed for use in the USA and Canada.
Features
- Modular construction allows for easy assembly or modification
- Available enclosures NEMA Type 1, 2, 3R, 4, 4X, 5, and 12
- Accessories and replacement parts allow design flexibility and maximizes job productivity
- Type 1, 2, 3R/5/12 available ready to install from distributor inventory
Specifications
Physical Attributes
- Color
- Gray
Conformance Attributes
- Product Certifications
- cULus
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Product Or Component Type
- surface cover, door latch
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 19 kg CO2 eq., 18.670005092855835
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 116 kg CO2 eq., 115.57740507395543
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- H And D Enrichment Class 3
- Panel components
- Cover Type
- surface cover with door
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 14.52 kg
- Returnability
- No
- Tightening Torque
- Cover 10...12 lb.in
- Type Of Front Plate
- ventilated
- Stocking Flag
- Y
- Pep Code
- ENVPEP2509015EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase A46.929616682377792, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.05534042350680859, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Market SegmentationCommercial
H And D SubrangeCOM
H And D Enrichment FunctionENCLOSURES
H And D Enrichment Class 4Panel front cover
Enclosure Materialsteel
Lock Type3 points lock
Product AvailabilityStock - Normally stocked in distribution facility
Sustainable PackagingNo
Total Lifecycle Carbon Footprint141 kg CO2 eq.
Medium DescPanelboard enclosure cover, NQNF, Type 1, surface, ventilated, 3 point latch, for 20in W x 50in H box
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; United States, US
Energy Model Use B6 2Electricity origin
Global Commercial StatusCommercialised
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 141.23236727269588
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2509015EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2509015EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- surface cover, door latch
