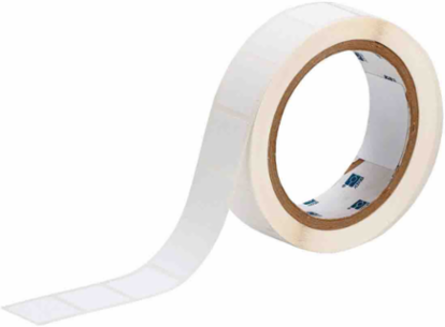

Brady THT-164-488-1 Polyester Labels, 0.9" H x 0.9" W, Roll of 1000 Labels, White
- MPN: THT-164-488-1
- UPC: 662820192619
- PPN: BRD-THT-164-488-1
- UNSPSC: 55121612
CAD
$104.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
High Performance Polyester (B-488) withstands numerous solvents and variable temperatures when applied to various surfaces including Stainless Steel and Polypropylene.
Features
- Matte white polyester material has a permanent acrylic adhesive and is thermal transfer printable
- Ideal for general and bar code labeling on flat, smooth surfaces
- UL approved;CSA accepted
- Service temperature of -40 to 320° F (-40 to 160° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; General Identification; Laboratory Labeling
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ANSI/ESD S541-2008; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Laboratory; Rating & Name Plates
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300; R6200
- Total Quantity
- 1000
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-488
- Material
- Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 22.86 mm W x 22.86 mm H
- Height (in/ft/yd)
- 0.9 in
- Label/Tape Size (in/ft/yd)
- 0.9 in H x 0.9 in W
- Maximum Service Temperature °F
- 293 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Printable Area Height (mm/cm/m)
- 22.86 mm
- Sign Size-General
- 0.9 in x 0.9 in
- Thickness (in/ft/yd)
- 0.0037 in
- Vertical Repeat
- 1 in
- Web Width (mm/cm/m)
- 27.94 mm
- Width (mm/cm/m)
- 22.86 mm
Brand NameBrady®
ColorWhite
DiagramIcon 3 (triangle)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll1000
Recommended RibbonIP-R4306; R4306
ShapeSquare
Total Qty per Pack1000 Label(s) / Roll
Trade NameWorkHorse
Adhesive TypePermanent Acrylic
Label PropertiesHarsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
Material PropertiesAutoclavable; Cryogenic storage
SAP B-NumberB-488
Dimensions0.9 in H x 0.9 in W
Dimensions 20.9 in H x 0.9 in W
Height (mm/cm/m)22.86 mm
Maximum Service Temperature °C145 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Printable Area Dimensions (Metric)22.86 mm H x 22.86 mm W
Printable Area Width (mm/cm/m)22.86 mm
Size - Width (mm)22.86 mm
Thickness (mm/cm/m)0.094 mm
Vertical Repeat (mm)25.40 mm
Width (in/ft/yd)0.9 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
