Bryant

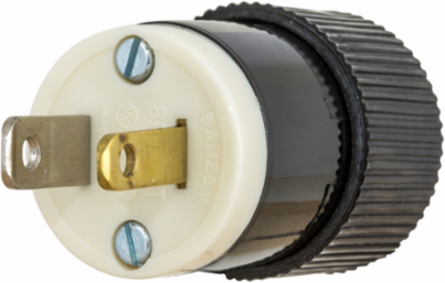

Bryant 9754NS Light Duty 15A 125V 2-Pole Plug, Non-Grounding, 1.12 Inch Width, Composite Material

Light Duty 15A 125V 2-Pole Plug, Non-Grounding, 1.12 Inch Width, Composite Material
  • MPN: 9754NS
  • UPC: 781786678101
  • PPN: HBL-9754NS
  • UNSPSC: 39121402

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$28.17/ EA

Description

Straight Blade Devices, Male Plug, Light Duty, Industrial/Commercial Grade, Straight, 15A 125V, 2-Pole 2-Wire Non- Grounding, 1-15P, White, Single Pack, Polarized

Features

  • Light Duty
  • Industrial/Commercial Grade
  • Straight
  • 15A 125V
  • 2-Pole 2-Wire Non- Grounding
  • Standard Product

Specifications

Specifications

Country of Origin
Puerto Rico
Length
1.60 in
Amperage Rating
15 A
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Poles
2-Pole
Phase
Single Phase
Type
Plug
Wattage
1875
Voltage Rating Description
125 V
Width
1.12 in
Display Size
Standard Sized
Number Of Poles
2-Pole
Style
Heavy Duty
Description - Invoice
PLUG, 15A 125V, 2P2W, POLARIZED
Harmonization Code
8536694020
MSDS Flag
No
Material - Mounting Hardware
Cord Mounted
Material
Composite
Base Unit of Measure
EA
Carton - Gross Weight per Pack
0.850 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Case Weight
5.350 lb.
Lowest Level UOM
Each
Pallet Height
44.100 in
Pallet Weight
614.250 lb.
Current / Amperage Rating15 A
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty
Cord TypeAll Portable
NEMA Rating1-15P
Number of Wires2-Wire
Special FeaturesStandard Product
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.05 lb.
ConnectivityScrew Terminals
Nema Rating1-15P
Number Of Wires2-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A010
Current Rating15 A
SeriesIndustrial
BOX SIZE3.900x7.000x4.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786678101
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786678100
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Yes
