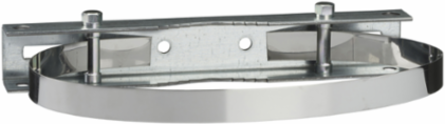

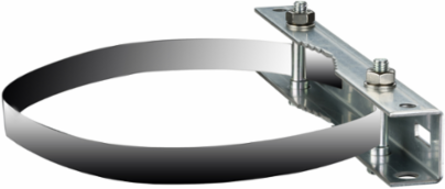

Schneider Electric NSYSFP300 Galvanised Steel Post Fixing Device 215mm Diameter 100kg Load
- MPN: NSYSFP300
- PPN: SCH-NSYSFP300
CAD
$155.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Post fixing steel device for Thalassa PLM43. Diameter max is 215mm. Mounting on rear of enclosure, and outdoor installations on a post. Permanent permissible load 100kg. Galvanised steel. 2 x support rail, 2 x strip and fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.77 in
- Country of Origin
- Brazil, Spain, Sweden, United States
Width11.61 in
Depth32.5 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 support rail, 2 strip
- Mounting Location
- outdoor installations on a post, rear of enclosure
- Local Publishable Date
- 2025-12-09
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Height Nominal
- 45 mm
- Width Nominal
- 295 mm
- Accessory / Separate Part Category
- fixing accessory
- Package Weight(Lbs)
- 1.798 kg
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 430 mm W: 330 mm D: 200 mm, - H: 430 mm W: 330 mm D: 200 mm, - H: 430 mm W: 330 mm D: 200 mm, - H: 430 mm W: 330 mm D: 200 mm, - H: 430 mm W: 330 mm D: 200 mm, - H: 430 mm W: 330 mm D: 200 mm, - H: 430 mm W: 330 mm D: 200 mm, - H: 430 mm W: 330 mm D: 200 mm
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Diameter215 mm
Fixing Modeby fixing element - on a post
Permanent Permissible Load100 kg
Product Or Component Typepost fixing device
ReturnabilityNo
Pep CodeENVPEP2202003EN
Height Useful45 mm
Width Real295 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
General Attributes
- Product Or Component Type
- post fixing device
ETIM
- ETIM 8
- EC002625
ETIM 9EC002625
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
