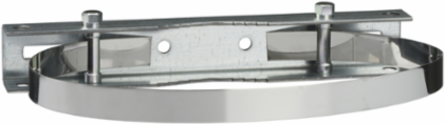

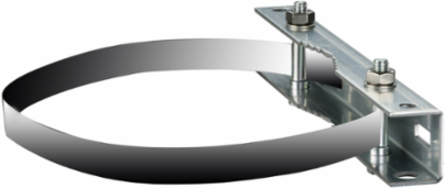

Schneider Electric NSYSFP500 Post Fixing Device Galvanised Steel Diameter 8-1/2 Inch Load 220 lb

Post Fixing Device Galvanised Steel Diameter 8-1/2 Inch Load 220 lb
Post Fixing Device Galvanised Steel Diameter 8-1/2 Inch Load 220 lb
  • MPN: NSYSFP500
  • PPN: SCH-NSYSFP500

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$160.08/ EA

Description

The Schneider Electric NSYSFP500 Post Fixing Device is expertly crafted from galvanized steel, ensuring durability and resistance to corrosion. Designed to accommodate a diameter of 8-1/2 inches, it comfortably supports loads up to 220 pounds, making it a reliable choice for various electrical box mounting needs. Suitable for use in diverse environments, this fixing device seamlessly integrates into your electrical setups, promoting stability and safety in installations. Its robust construction and thoughtful design reflect Schneider Electric's commitment to quality and performance in electrical solutions.

Specifications

Permanent Permissible Load
100 kg (220.46 lb)
Range Compatibility
Thalassa, Thalassa PLM
Diameter
215 mm (8.46 in)
Height
45 mm (1.77 in)
Mounting Location
Rear of enclosure, Outdoor post installations
Device Composition
Fixing elements, 2 support rail, 2 strip
RoHS Compliance
Yes (EU RoHS pro-active compliance, China RoHS)
Mercury Free
Yes
Environmental Disclosure
ENVPEP2202003EN
Accessory Category
Fixing accessory
Circularity Profile
N/A
Device ApplicationMulti-purpose
RangeThalassa
Width495 mm (19.49 in)
Depth32.5 mm (1.28 in)
MaterialGalvanised steel
Warranty18 months
Toxic Heavy Metal FreeYes
REACH ComplianceFree of SVHC above threshold
Sustainable Offer StatusGreen Premium product
Fixing ModeBy fixing element on a post
Enclosure Nominal DimensionsH: 747 mm, W: 536 mm, D: 300 mm
