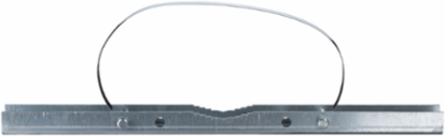

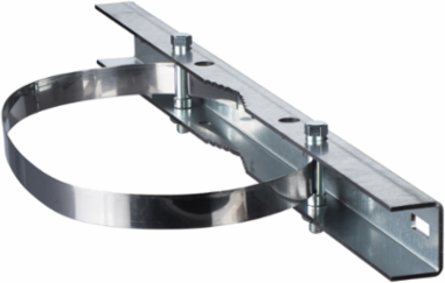

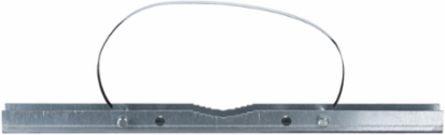

Schneider Electric NSYSFP600 Galvanized Steel Post Fixing Device, 215 mm Diameter, 100 kg Load

MPN: NSYSFP600
PPN: SCH-NSYSFP600

$176.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This post fixing device from Schneider Electric is expertly crafted from galvanized steel, offering exceptional durability and reliability for your automation and control needs. With a generous diameter of 215 mm, it is designed to support loads of up to 100 kg, making it ideal for robust applications in data and communication environments. Whether you're setting up IT enclosures or racks, this fixing device ensures stable and secure installations, contributing to the overall efficiency and safety of your setups.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Spain, Sweden
Width	23.43 in

Height	1.77 in
Depth	32.5 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	fixing elements2 support rail, 2 strip
Mounting Location	rear of enclosure, outdoor installations on a post
Local Publishable Date	2025-12-09
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Material	galvanised steel
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	PanelSeT
Sustainable Packaging	No
Height Nominal	45 mm
Width Nominal	595 mm
Accessory / Separate Part Category	fixing accessory
Package Weight(Lbs)	3.300 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	- H: 847 mm W: 636 mm D: 300 mm, - H: 847 mm W: 636 mm D: 300 mm, - H: 847 mm W: 636 mm D: 300 mm, - H: 847 mm W: 636 mm D: 300 mm, - H: 847 mm W: 636 mm D: 300 mm, - H: 847 mm W: 636 mm D: 300 mm, - H: 847 mm W: 636 mm D: 300 mm, - H: 847 mm W: 636 mm D: 300 mm
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Diameter	215 mm
Fixing Mode	by fixing element - on a post
Permanent Permissible Load	100 kg
Product Or Component Type	post fixing device
Returnability	No
Pep Code	ENVPEP2202003EN
Height Useful	45 mm
Width Real	595 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8205700090

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2202003EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
