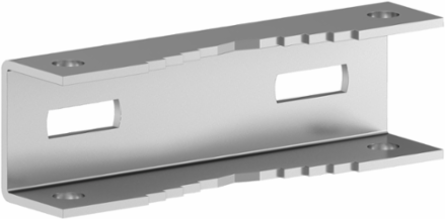

Post Fixing Device 600mm, Galvanised Steel, Max Load 100kg
Schneider Electric

Schneider Electric NSYSFPSC60 Post Fixing Device 600mm, Galvanised Steel, Max Load 100kg

  • MPN: NSYSFPSC60
  • PPN: SCH-NSYSFPSC60

CAD

$164.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric NSYSFPSC60 Post Fixing Device is designed to provide robust support for your automation and control needs. Crafted from galvanized steel, this 600mm device offers both durability and corrosion resistance, making it suitable for demanding environments. With a maximum load capacity of 100kg, it ensures secure and reliable mounting for various IT enclosures and racks, facilitating effective data and communication management. Its thoughtful design integrates seamlessly into your existing setups, making it an essential component for enhancing operational efficiency.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Spain, Indonesia
Width
23.43 in
Height1.77 in
Depth32.5 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
fixing elements2 support rail, 2 strip
Fixing Mode
by fixing element M8 - to the inserts in the rear of the enclosure, minimum diameter 150 mm, maximum diameter 215 mm
Local Publishable Date
2026-04-14
Stocking Flag
N
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Device Application
multi-purpose
Material
galvanised steel
Permanent Permissible Load
100 kg
Product Or Component Type
post fixing device
Range
PanelSeT
Sustainable Packaging
No
Height Nominal
45 mm
Width Nominal
595 mm
Accessory / Separate Part Category
fixing accessory
Package Weight(Lbs)
3.154 kg
Warranty (In Months)
18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Locationrear of enclosure
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Pep CodeENVPEP1001004EN
Height Useful45 mm
Width Real595 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8302500000

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Environmental Disclosure
ENVPEP1001004EN
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold

General Attributes

Product Or Component Type
post fixing device

ETIM

ETIM 8
EC002625
ETIM 9EC002625

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
