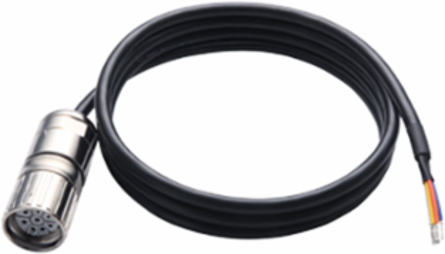

Schneider Electric VW3M5501R500 Power Cordset 50 Meter Shielded Cable with M23 Connector
- MPN: VW3M5501R500
- PPN: SCH-VW3M5501R500
CAD
$971.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This power cordset enables connection between synchronous motor BMP and variable speed drive Altivar 32 or Altivar 320. It is equipped with one 8-way M23 connector for synchronous motor side and one free end for variable speed drive side. it is 50 meters shielded cable.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Physical Attributes
- Cable Length
- 50 m
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 2.3860942059, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 181 kg CO2 eq., 181.15
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Serviceability
- No
- Use Carbon Footprint
- 181.15
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI111248EN
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Electrical Connection
- 1 connector M23 8 synchronous motor side1 free end variable speed drive side
- Range Of Product
- Altivar
- Software Version
- 5.1
- Total Lifecycle Carbon Footprint
- 254 kg CO2 eq.
- Pep Code
- ENVPEP1112048EN
- Pep Verification Date
- 2011-12-01
- Type Of Verification For The Pep
- Independent internal review
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- ELCD_Electricity_mix_<1kV_EU-27__ELCD-0089
- Energy Model - End Of Life [C1-c4]
- ELCD_Electricity_mix_<1kV_EU-27__ELCD-0089
- Accessory / Separate Part Destination
- between synchronous motor and variable speed drive
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 45363500
- Water Pollution (M3) Operational Energy Use [B6]
- 80.65
Carbon Footprint Of The End-of-life Phase [C1 To C4]13 kg CO2 eq., 13.1873697374
Carbon Footprint Of The Manufacturing Phase [A1 To A3]57 kg CO2 eq., 57.1276281784
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeOut
Eoli Availability DisplayYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Cable Composition4 x 1.5 mm² + 2 x 1 mm² + 2 x 0.14 mm²
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingNo
Type Of Cableshielded cable
Database Version2013-02
Pcr VersionPCR-ed2
Data Sourceextrapolated product
Energy Consumption On Product Lifetime In Kwh3153.6
Energy Model - Use [B6]ELCD_Electricity_mix_<1kV_EU-27__ELCD-0089
Accessory / Separate Part Categoryconnection accessories
Accessory / Separate Part Typepower cable
Package Weight(Lbs)12.944 kg
Warranty (In Months)18
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]181.15
Customs Code8544429090
Environment Attributes Main
- Product Compatibility
- synchronous motor BMP 140 mm, 1 F, synchronous motor BMP 140 mm, 2 Csynchronous motor BMP 70 mm, 1 F, synchronous motor BMP 70 mm, 2 R, synchronous motor BMP 70 mm, 2 F, synchronous motor BMP 100 mm, 1 R, synchronous motor BMP 100 mm, 1 Fsynchronous motor BMP 140 mm, 1 C, synchronous motor BMP 100 mm, 2 R, synchronous motor BMP 100 mm, 2 F, synchronous motor BMP 70 mm, 1 R
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI111248EN
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1112048EN
- Pcr Version
- PCR-ed2
Take BackNo
Carbon Footprint253.8510921217
Environmental DisclosureENVPEP1112048EN
Packaging Without Single Use PlasticNo
Pep Verification Date2011-12-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Altivar
ETIM
- ETIM 8
- EC001576
ETIM 9EC001576
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
