Schneider Electric VW3M5502R30 power cordset 4x2,5mm² + 2x1mm² + 2x0,14mm² 3 m one end w M23 industrial con.
- MPN: VW3M5502R30
- PPN: SCH-VW3M5502R30
CAD
$299.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

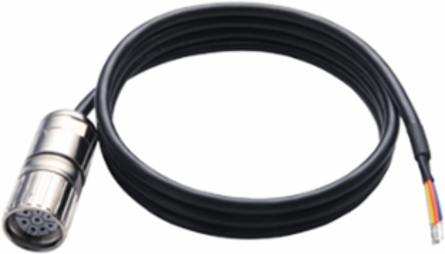

This power cordset enables connection between synchronous motor BMP and variable speed drive Altivar 32 or Altivar 320. It is equipped with one 8-way M23 connector for synchronous motor side and one free end for variable speed drive side. it is 3 meters shielded cable.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Altivar
- Accessory / Separate Part Category
- connection accessories
- Accessory / Separate Part Type
- power cable
- Accessory / Separate Part Destination
- between synchronous motor and variable speed drive
Cable Length3 m
Range CompatibilityAltivar Machine ATV320 || Altivar 32
Type Of Cableshielded cable
Complementary
- Product Compatibility
- synchronous motor BMP 140 mm, 1 R || synchronous motor BMP 140 mm, 2 F
- Cable Composition
- 4 x 2.5 mm² + 2 x 1 mm² + 2 x 0.14 mm²
Electrical Connection1 connector M23 8 synchronous motor side || 1 free end variable speed drive side
Net Weight1.075 kg
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111248EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Circularity ProfileENVEOLI1112048EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
