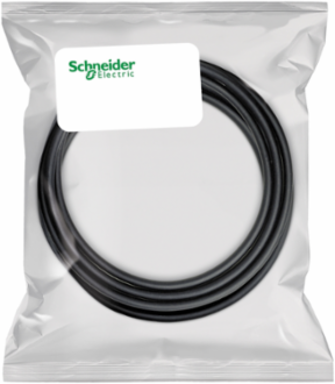

Schneider Electric VW3M5501R250 power cordset 4x1,5mm² + 2x1mm² + 2x0,14mm² 25 m one end w M23 industrial con.
- MPN: VW3M5501R250
- PPN: SCH-VW3M5501R250
CAD
$510.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This power cordset enables connection between synchronous motor BMP and variable speed drive Altivar 32 or Altivar 320. It is equipped with one 8-way M23 connector for synchronous motor side and one free end for variable speed drive side. it is 25 meters shielded cable.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
Physical Attributes
| Cable Length | 25 m |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Cable Composition | 4 x 1.5 mm² + 2 x 1 mm² + 2 x 0.14 mm² |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Type Of Cable | shielded cable |
| Accessory / Separate Part Destination | between synchronous motor and variable speed drive |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544429090 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Electrical Connection | 1 connector M23 8 synchronous motor side1 free end variable speed drive side |
| Range Of Product | Altivar |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | power cable |
| Package Weight(Lbs) | 6.632 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | synchronous motor BMP 140 mm, 1 F, synchronous motor BMP 140 mm, 2 Csynchronous motor BMP 70 mm, 1 F, synchronous motor BMP 70 mm, 2 R, synchronous motor BMP 70 mm, 2 F, synchronous motor BMP 100 mm, 1 R, synchronous motor BMP 100 mm, 1 Fsynchronous motor BMP 140 mm, 1 C, synchronous motor BMP 100 mm, 2 R, synchronous motor BMP 100 mm, 2 F, synchronous motor BMP 70 mm, 1 R |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC001576 |
|---|
| ETIM 9 | EC001576 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
