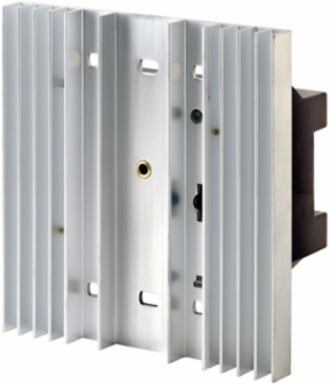

Leviton PE100-10W Power Extender for Incandescent & Magnetic Low-Voltage, 1920W at 120V
- MPN: PE100-10W
- UPC: 078477375297
- PPN: LEV-PE100-10W
CAD
$476.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Power Extender Incandescent and Magnetic Low-Voltage, 1920W / 1920VA at 120 Volt AC 50/60Hz, Phase Independent of Control Device
Features
- Works with incandescent, magnetic low voltage, halogen or neon/cold cathode lighting
- Low-end trim available for setting the minimum brightness level
- Emulates the characteristics of the dimmer that it is connected to in terms of dimming range and resolution
- Works with any Dimensions Multi-zone Controller/Dimmer to extend load capacity on any zone
- The Leviton PE100-1 Power Extender allows a dimming zone’s power handling capacity to be extended to a full 1920W/VA on 120V input power. It allows a zone to dim or switch a fully loaded circuit of incandescent and magnetic low voltage loads only.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Color
- White
- Device Type
- Power Extender
- Load Rating
- 1920W / 1920VA
- Notes
- If dimmer has a Neutral wire it must be connected.
- Product Line
- Power Extenders
- Standards and Certifications
- UL/CSA
Control Input120 Volt 50/60Hz
Load OutputPhase Independent of Control Device
Load TypeIncandescent and Magnetic Low-Voltage
Product CategorySystem or Network
Product TypePower Extender
Warranty2-Year Limited
Electrical Specifications
- Voltage
- 120 VAC
Wattage Per Channel1920
