Schneider Electric GV3APN01 Extended Rotary Handle Kit for TeSys Deca Frame 3, IP54, Black Handle
- MPN: GV3APN01
- PPN: SCH-GV3APN01
CAD
$160.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

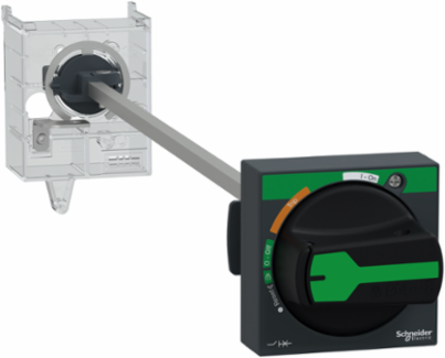

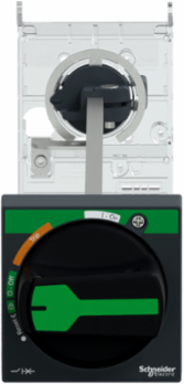

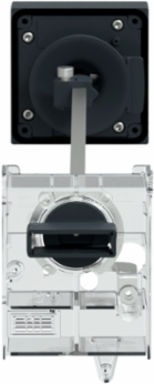

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Physical Attributes
- Handle Color
- black
Handle Front Plate Colorgrey
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Rotary Handle Padlocking
- padlock in ON position, padlock in OFF position
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 2.575993493
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.484113459
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 21.07
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GV3AP
- Position Indicator
- trip position
- Product Or Component Type
- rotary handle kit
- Range Of Product
- TeSys Deca
- Rotary Handle Mounting Style
- extended
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Color
- grey
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with 690V and 65A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 3P& 10- Rated breaking capacity 6KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 315.36
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Certificate Agency
- cULus
- Back/Door Distance
- 189-300 mm
- Package Weight(Lbs)
- 353.000 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 21.07
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 148.81
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.026
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 374.07
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 374.07
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.285446354, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.106934439, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]21 kg CO2 eq., 21.07
Local Publishable Date2026-07-07
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI060901
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV3AP
Locking Options Description1 to 3 padlocks
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint30 kg CO2 eq.
Handle Colorblack
Pep CodeENVPEP0609001EN
Pep Verification Date2023-09-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %58
Accessory / Separate Part Categorycontrol accessory
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]21.016
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]4046.1
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]546.17
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4420.2
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4046.1
Customs Code8538908120
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI060901
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-09-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Product CompatibilityGV3P, GV3L
Recycled Metal Content At Cr Level0 %
Carbon Footprint29.52248775
Environmental DisclosureENVPEP0609001EN
Ip Degree Of ProtectionIP54
Packaging Without Single Use PlasticYes
Pep CodeENVPEP0609001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- rotary handle kit
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000230
ETIM 9EC000230
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
