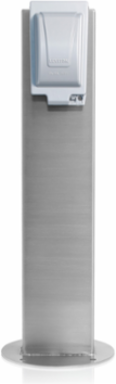

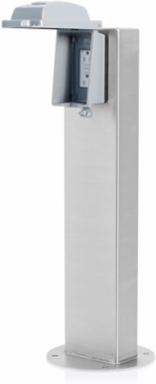

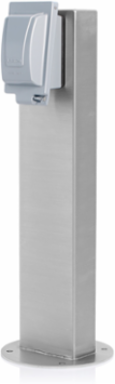

Leviton 1PS24-3S Power Pedestal Kit, No Hinge, Surface Mount
- MPN: 1PS24-3S
- PPN: LEV-1PS24-3S
CAD
$1737.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-Gang 24” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Brushed, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW) , Weather Resistant In-Use Cover (IUM1V-GY)
Features
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Construction | Welded pedestal body and base |
|---|---|
| Mounting Hardware | Anchors Included |
| Grounding | Stainless Steel (Pre-installed Lug) |
|---|---|
| Pedestal Material | 304 Stainless Steel (14 gauge body, 7 gauge base) |
Mechanical Specifications
| Conduit Feeds | Accommodates two 1-1/2" conduit raceways |
|---|---|
| Maximum Dimensions | 24.0"H x 8.0"W x 8.0"D |
| Height | 24" |
|---|---|
| Mounting Plate | - |
Product Features
| Application | Commercial|RV/Campsites |
|---|---|
| Color | Brushed Stainless Steel |
| Kitted Options | Comes with Leviton Receptacles |
| Top | 1-Gang Vertical Opening (Fits single device and electrical cover) |
| Base | Pedestal |
|---|---|
| Hinge Type | No Hinge |
| Receptacle Compatibility | Mounting holes for weather-resistant cover (Receptacle fit is cover dependent) |
Warranty
| Warranty | 1-Year Limited |
|---|
Electrical Specifications
| Max. Amperage | 60A Max |
|---|
| Voltage | 125 VAC |
|---|
Standards & Certifications
| Certification/Listing | cULus, NOM |
|---|
