Leviton

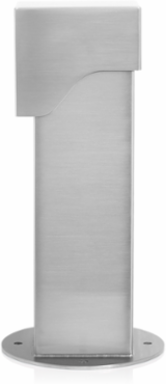

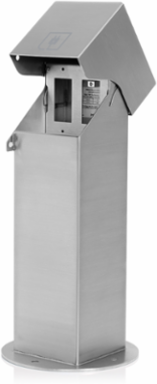

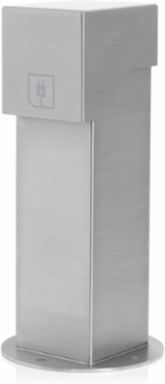

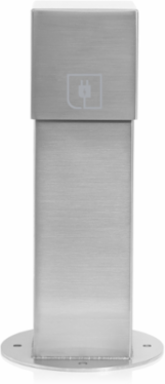

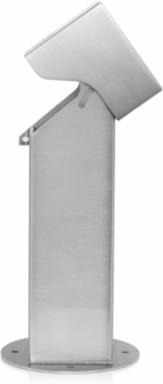

Leviton 2PH18-S Power Pedestal, Standard Hinge, Surface Mount

  • MPN: 2PH18-S
  • UPC: 078477001820
  • PPN: LEV-2PH18-S

CAD

$2242.14

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

2-Gang 18” Stainless Steel Power Pedestal, Surface Mount, NEMA 3R, Lockable Hinged Top, Self-Closing Lid, Brushed, Stainless Steel

Features

  • SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
  • CONVENIENT – easy to mount and install with a variety of device configurations
  • VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more

Documentation & Downloads

Specifications

Key Specifications

Country of OriginUnited States
RoHS CompliantFalse

Material Specifications

ConstructionWelded pedestal body, base and weatherproof cover
Mounting HardwareAnchors Included
GroundingStainless Steel (Pre-installed Lug)
Pedestal Material304 Stainless Steel (14 gauge body and cover, 7 gauge base)

Product Features

ApplicationCommercial|RV/Campsites
ColorBrushed Stainless Steel
Receptacle CompatibilityDecora Style
BasePedestal
Hinge TypeStandard
TopLockable Hinged Top

Warranty

Warranty1-Year Limited

Electrical Specifications

Max. Amperage30A Max

Standards & Certifications

Certification/ListingcULus
NEMA RatingNEMA 3R
Power Pedestal, Standard Hinge, Surface Mount
