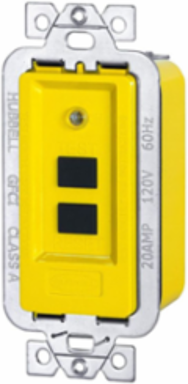

Hubbell Wiring Device-Kellems GFMST20A GFCI Module 20A 120V AC Auto Set Faceless with 6 Inch Wire Leads
- MPN: GFMST20A
- UPC: 783585703282
- PPN: HBL-GFMST20A
- UNSPSC: 39121406
CAD
$190.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Protection Products, GFCI Modules, Industrial/Commercial, Auto Set, 20A 120V AC, Faceless, 6" Wire Leads, 4-6 mA Trip Level, Yellow
Features
- High impact UV stabilized housing for long life
- All-glass circuit board provides moisture immunity
- Watertight GFCI housing for use in harsh environments
- Auto Set
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 3.100 in
- Amperage Rating
- 20 A
- Color
- Yellow
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- UL Listed
- Voltage Rating
- 120 VAC
- Wire Size
- #14 AWG to #12 AWG
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Display Size
- Standard Sized Product
- Number Of Wires
- 3-Wire Grounding
- Class Code
- A40
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A40A410
- Current Rating
- 20 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 5.400x15.400x11.700 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585703282
- Case Weight
- 12.150 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.200 in
- Pallet Weight
- 972.000 lb.
- NAICS Code
- 335931A107
Current / Amperage Rating20 A
Industry Standard(s)UL Listed
ApplicationGFCI Module
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Wires3-Wire Grounding
Special FeaturesAuto Set
TypeGFCI Module
Wattage2500 W
Voltage Rating Description120 VAC
General Literature Asset 2 Display TextPortable GFCI Devices
ConnectivityBack and Side Wired Screw Terminals
Number Of Poles2-Pole
StyleAutomatic Set
Description - InvoiceGFCI MODULE, 20A 120V, YL, AUTOMATIC SET
Harmonization Code8536308000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585703281
Pallet Length48.000 in
Pallet Width40.000 in
