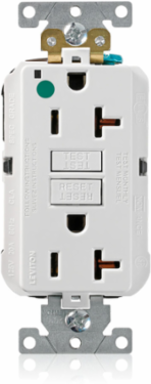

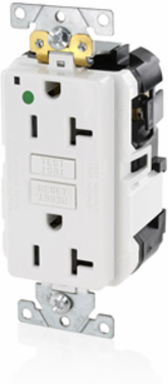

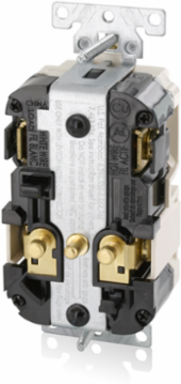

Leviton MGFN2-HGW 20 Amp GFCI Receptacle, Hospital Grade, Self-Grounding, NEMA 5-20R, 125 Volt
- MPN: MGFN2-HGW
- UPC: 078477724446
- PPN: LEV-MGFN2-HGW
CAD
$93.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

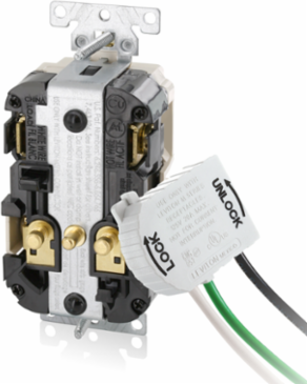

Lev-Lok SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Power Indication, 20 Amp, 125 Volt, Modular (line) and Back or Side Wire (load), NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Features
- Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Material Specifications
- Body Material
- Polycarbonate
- Ground Clips
- Brass
- Strap Material
- Galvanized Steel
- Terminal Screws
- Plated Steel
Face MaterialPBT
Line ContactsBrass
Terminal ClampBrass
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Termination
- Modular (line) and Back or Side Wire (load)
Screw Terminal Torque14-18 in-lbs
Trip LevelClass A, 5mA plus or minus 1mA
Product Features
- Brand
- SmartlockPro Lev-Lok
- Device Type
- Duplex Receptacle Outlet
- Function
- GFCI
ColorWhite
Feature 3Power Indication
GradeExtra Heavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Short Circuit Current Rating
- 2kA
- Wire
- 3
Feed-Through Current20 Amp
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
