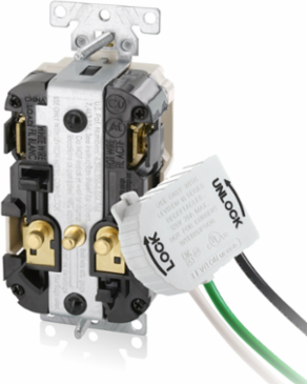

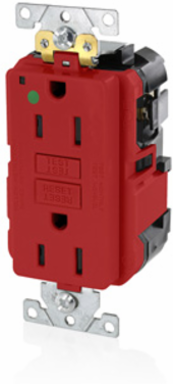

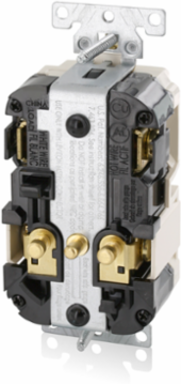

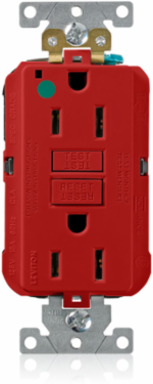

Leviton MGFN1-HGR 15 Amp SmartlockPro® GFCI Outlet, Hospital Grade, Duplex, NEMA 5-15R

15 Amp SmartlockPro® GFCI Outlet, Hospital Grade, Duplex, NEMA 5-15R - https://media.province-electric.com/476/csv_leviton/medium/38840ec0ae2ac3f3098be0db22b472563b35eaf5-medium.png

15 Amp SmartlockPro® GFCI Outlet, Hospital Grade, Duplex, NEMA 5-15R - https://media.province-electric.com/476/csv_leviton/medium/cc2f130e38d0d5b6464709a6707b1883f7c9f66e-medium.png

15 Amp SmartlockPro® GFCI Outlet, Hospital Grade, Duplex, NEMA 5-15R - https://media.province-electric.com/476/csv_leviton/medium/33b1b04878069f5d43eba8d1307b48f322e3844f-medium.png

15 Amp SmartlockPro® GFCI Outlet, Hospital Grade, Duplex, NEMA 5-15R

MPN: MGFN1-HGR
UPC: 078477724415
PPN: LEV-MGFN1-HGR

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$84.77/ EA

Qty:

Loading add to cart quantity...

Description

Lev-Lok SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Power Indication, 15 Amp, 20 Amp Feed-Through, 125 Volt, Modular (line) and Back or Side Wire (load), NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red Mating Lev-Lok Wiring Module Required for Use

Features

Calculate Time & Money Saved with the Lev-Lok Savings Calculator!

Specifications

Standards and Certifications

ANSI: C-73

NEMA: WD-1 & WD-6

Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596

Material Specifications

Body Material: Polycarbonate

Ground Clips: Brass

Strap Material: Galvanized Steel

Terminal Screws: Plated Steel

Face MaterialPBT

Line ContactsBrass

Terminal ClampBrass

Mechanical Specifications

Line Side Termination: Leviton Cat. MSTWL Wiring Modules

Product ID: Ratings are permanently marked on device

Termination: Modular (line) and Back or Side Wire (load)

Load Side Termination#14 - #10 AWG Solid or Stranded

Screw Terminal Torque14-18 in-lbs

Trip LevelClass A, 5mA plus or minus 1mA

Specifications

Country of Origin: China

RoHS CompliantFalse

Product Features

Brand: SmartlockPro Lev-Lok

Device Type: Duplex Receptacle Outlet

Function: GFCI

ColorRed

Feature 3Power Indication

GradeExtra Heavy-Duty Hospital Grade

Environmental Specifications

Flammability: Rated V-0 per UL 94

Operating Temperature-35C to +66C

Electrical Specifications

Amperage: 15 A & 20 A Feed-Through

Grounding: Self-Grounding

Short Circuit Current Rating: 2kA

Wire: 3

Feed-Through Current20 Amp

Pole2

Voltage125 VAC

AC Horsepower Ratings

At Rated Voltage: 1 HP
