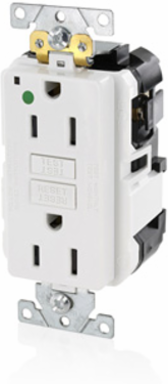

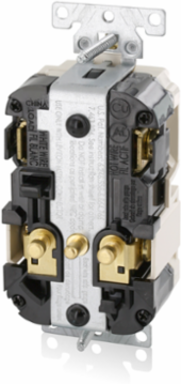

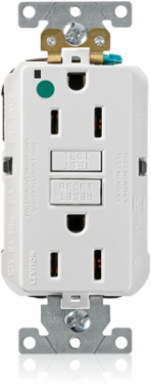

Leviton MGFN1-HGW 15 Amp SmartlockPro GFCI Receptacle, Hospital Grade, 125 Volt, NEMA 5-15R
- MPN: MGFN1-HGW
- UPC: 078477724354
- PPN: LEV-MGFN1-HGW
CAD
$88.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

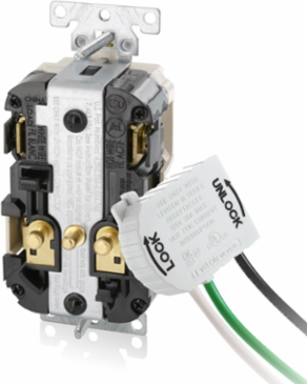

Lev-Lok SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Power Indication, 15 Amp, 20 Amp Feed-Through, 125 Volt, Modular (line) and Back or Side Wire (load), NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Material Specifications
- Body Material
- Polycarbonate
- Ground Clips
- Brass
- Strap Material
- Galvanized Steel
- Terminal Screws
- Plated Steel
Face MaterialPBT
Line ContactsBrass
Terminal ClampBrass
Mechanical Specifications
- Line Side Termination
- Leviton Cat. MSTWL Wiring Modules
- Product ID
- Ratings are permanently marked on device
- Termination
- Modular (line) and Back or Side Wire (load)
Load Side Termination#14 - #10 AWG Solid or Stranded
Screw Terminal Torque14-18 in-lbs
Trip LevelClass A, 5mA plus or minus 1mA
Product Features
- Brand
- SmartlockPro Lev-Lok
- Device Type
- Duplex Receptacle Outlet
- Function
- GFCI
ColorWhite
Feature 3Power Indication
GradeExtra Heavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 15 A & 20 A Feed-Through
- Grounding
- Self-Grounding
- Short Circuit Current Rating
- 2kA
- Wire
- 3
Feed-Through Current20 Amp
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
