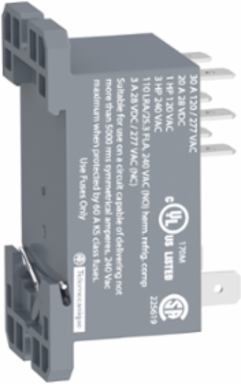

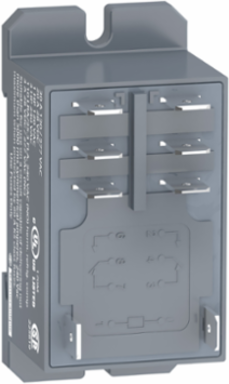

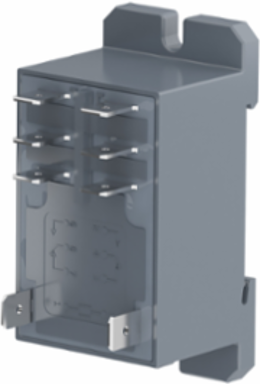

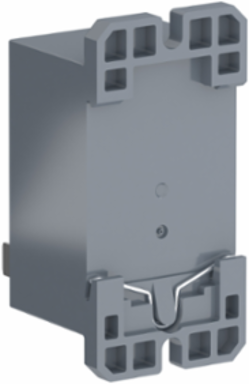

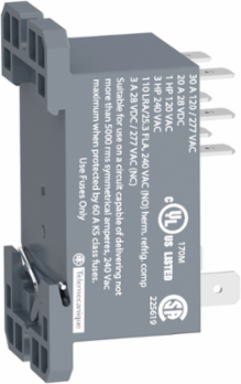

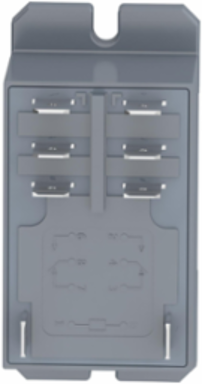

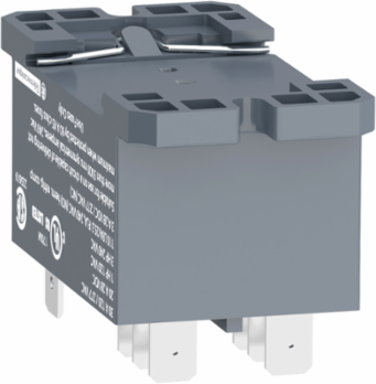

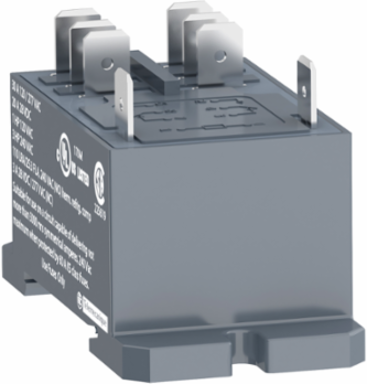

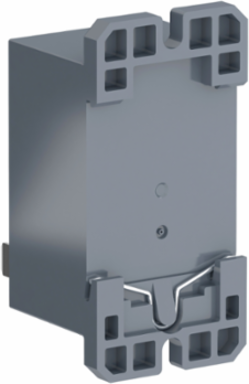

Schneider Electric RPF2BP7 Power Relay 30A, 230V AC, 2 C/O, DIN Rail/Panel Mount
- MPN: RPF2BP7
- PPN: SCH-RPF2BP7
CAD
$27.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 230V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Physical Attributes

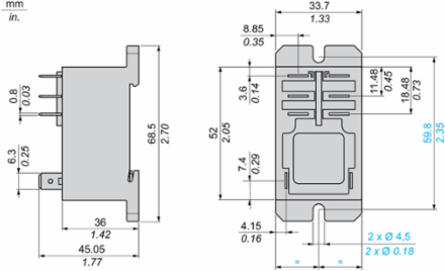

- Cad Overall Depth
- 39.2 mm
- Cad Overall Width
- 33.7 mm
Cad Overall Height68.5 mm
Complementary Attributes
- Minimum Switching Capacity
- 6000 mW 500 mA / 12 V NO, 170 mW 10 mA / 6 V NC
- Control Circuit Voltage Limits
- 184...253 V
- Maximum Switching Capacity
- 7500 VA/700 W
- Minimum Switching Current
- 500 mA
Control Circuit TypeAC
Line Rated Current30 A
Maximum Switching Voltage250 V IEC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between poles with basic, 4000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
- Mounting Support
- DIN rail, panel
- Shock Resistance
- 10 gnin operation, 30 gnnot operating
- Contacts Composition
- 2 C/O
- [Ie] Rated Operational Current
- 3 A 28 V DC) NC UL, 3 A 250 V AC) NC IEC, 3 A 28 V DC) NC IEC30 A 277 V AC) NO UL, 20 A 28 V DC) NO UL, 30 A 250 V AC) NO IEC, 25 A 28 V DC) NO IEC, 3 A 277 V AC) NC UL
- [Uc] Control Circuit Voltage
- 230 V AC 50/60 Hz, 230 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11098077113366862, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0003047993681876018
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 27 kg CO2 eq., 26.551167340930224
- Local Publishable Date
- 2026-03-26
- Future Imap
- 11.99
- Stocking Flag
- N
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Consumption
- 4 VA 60 Hz
- Compatibility Code
- RPF
- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles resistive
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT II
- Relay Type
- power relay
- Returnability
- Yes
- Series Name
- RPF series
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 28 kg CO2 eq.
- Control Circuit Voltage
- 230 V
- Pep Code
- ENVPEP2502021EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 1
- Connections - Terminals
- quick-connect terminal
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Load Current25 A 28 V DC, 30 A 250 V AC
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Certificate AgencyUL, CE, CSA, GOST
[Ithe] Conventional Enclosed Thermal Current25 A -40-55 °C relays side by side without a gap, 30 A -40-55 °C 13 mm gap between two relays
[Ui] Rated Insulation Voltage250 V IEC, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.20902329317351404, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7827114994592784
Local Data StatusPublishable
Return IndicatorY
Future Msrp13.38
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance15600 Ohm at 20 °C +/- 15 %
Contacts Materialsilver tin oxide
Control Typewithout lockable test button
Mechanical Durability5000000 cycles
Operating Time25 ms
Product Or Component TypeDIN rail/panel mount relay
Range Of ProductHarmony Electromechanical Relays
Reset Time25 ms
Safety Reliability DataB10d = 100000
Shape Of Pinflat (faston type)
Status Ledwithout
Test Levelslevel A group mounting
Utilisation Coefficient10 %
Control Circuit Type2AC
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.not applicable
Functional-unit UnitUnit
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Drop-out Voltage Threshold>= 0.15 Uc>= 0.15 Uc
Package Weight(Lbs)84.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2502021EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint27.65418770406487
Environmental DisclosureENVPEP2502021EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- DIN rail/panel mount relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
