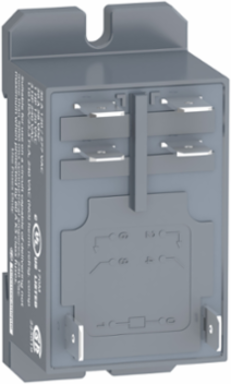

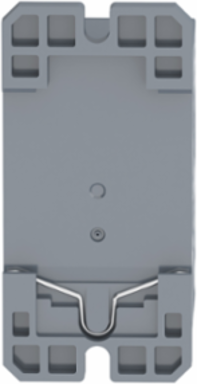

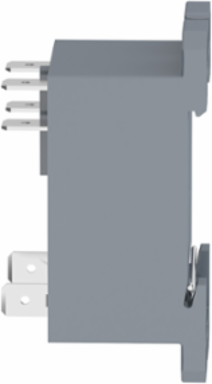

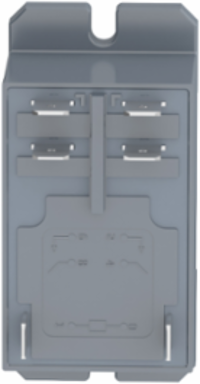

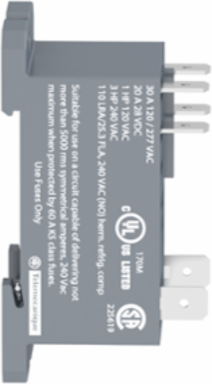

Schneider Electric RPF2AJD Power Relay 30A, 2 NO, 12V DC, DIN Rail/Panel Mount

MPN: RPF2AJD
PPN: SCH-RPF2AJD

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$24.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 12V DC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, United States

Physical Attributes

Cad Overall Depth	39.2 mm
Cad Overall Width	33.7 mm

Cad Overall Height	68.5 mm

Complementary Attributes

Control Circuit Type	DC
Line Rated Current	30 A
Maximum Switching Voltage	250 V IEC
Minimum Switching Current	500 mA

Control Circuit Voltage Limits	9.6...13.2 V
Maximum Switching Capacity	7500 VA/700 W
Minimum Switching Capacity	6000 mW 500 mA / 12 V NO

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	2000 V AC between poles with basic, 4000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
Mounting Support	DIN rail, panel
Contacts Composition	2 NO
Certificate Agency	GOST, CSA, CE, UL
[Uc] Control Circuit Voltage	DC, 12 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.18579848282090136, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.7 kg CO2 eq., 0.6957435550749143
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Consumption	1.7 W
Compatibility Code	RPF
Contacts Type And Composition	2 NO
Electrical Durability	100000 cycles resistive
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT II
Relay Type	power relay
Returnability	Yes
Series Name	RPF series
Shock Resistance	10 gnin operation30 gnnot operating
Status Led	without
Test Levels	level A group mounting
Utilisation Coefficient	10 %
Control Circuit Type2	DC
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.not applicable
Functional-unit Unit	Unit
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
[Ithe] Conventional Enclosed Thermal Current	25 A -40-55 °C relays side by side without a gap30 A -40-55 °C 13 mm gap between two relays
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Drop-out Voltage Threshold	>= 0.1 Uc>= 0.1 Uc
Package Weight(Lbs)	80.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Load Current	25 A 28 V DC, 30 A 250 V AC
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Control Circuit Voltage	12 V
[Ie] Rated Operational Current	30 A 277 V AC) NO UL, 20 A 28 V DC) NO UL30 A 250 V AC) NO IEC, 25 A 28 V DC) NO IEC
Carbon Footprint Of The Distribution Phase [A4]	0.09864957434103878, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0002709327717223127
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	27 kg CO2 eq., 26.551167340930224
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	86 Ohm at 20 °C +/- 10 %
Contacts Material	silver tin oxide
Control Type	without lockable test button
Mechanical Durability	5000000 cycles
Operating Time	25 ms
Product Or Component Type	DIN rail/panel mount relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	25 ms
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Software Version	v6.1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	28 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep Code	ENVPEP2502021EN
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Energy Model - Manufacturing [A1-a3]	China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	1
[Ui] Rated Insulation Voltage	250 V IEC300 V UL
Connections - Terminals	quick-connect terminal
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536410050
