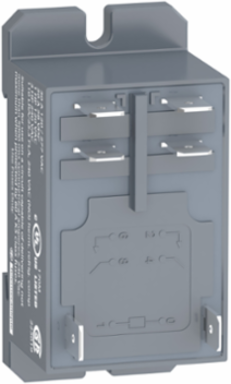

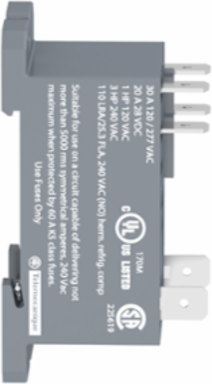

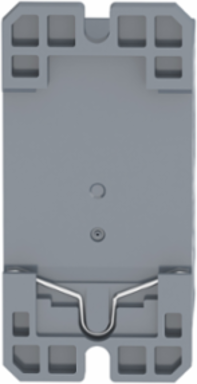

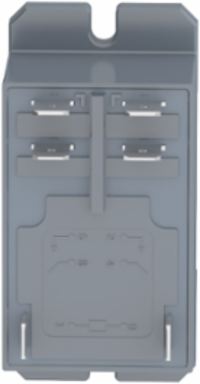

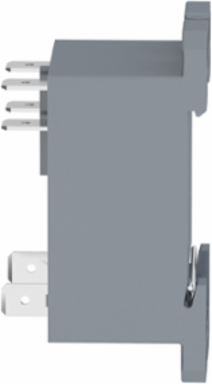

Schneider Electric RPF2AF7 power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2NO, 120V AC
Schneider Electric RPF2AF7 power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2NO, 120V AC
- MPN: RPF2AF7
- PPN: SCH-RPF2AF7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$22.97/ EA
Description
This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 120V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- UL || CSA || GOST || CE
- Pollution Degree
- 3
- Dielectric Strength
- 2000 V AC between poles basic || 4000 V AC between coil and contact reinforced || 1500 V AC between contacts micro disconnection
- Shock Resistance
- 10 gnin operation || 30 gnnot operating
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsCSA C22.2 No 14 || UL 508 || IEC 61810-1
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP40 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP130203EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Maximum Switching Capacity
- 7500 VA/700 W
- Average Consumption
- 4 VA 60 Hz
- Protection Category
- RT II
- Mounting Support
- DIN rail || panel
- Reset Time
- 25 ms
- Cad Overall Height
- 68.5 mm
- Average Resistance
- 4250 Ohm 20 °C +/- 15 %
- [Ie] Rated Operational Current
- 30 A 277 V AC) NO UL || 20 A 28 V DC) NO UL || 30 A 250 V AC) NO IEC || 25 A 28 V DC) NO IEC
- Mechanical Durability
- 5000000 cycles
- Control Circuit Voltage Limits
- 96...132 V
- Drop-Out Voltage Threshold
- >= 0.15 Uc
- Cad Overall Width
- 33.7 mm
- Minimum Switching Capacity
- 6000 mW 500 mA / 12 V NO
Safety Reliability DataB10d = 100000
Operating Rate<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levelslevel A group mounting
Electrical Durability100000 cycles resistive
Net Weight0.082 kg
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
[Ui] Rated Insulation Voltage250 V IEC || 300 V UL
Operating Positionany position
Operating Time25 ms
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Cad Overall Depth39.2 mm
Specifications
- Utilisation Coefficient
- 10 %
- Range Of Product
- Harmony Electromechanical Relays
- Shape Of Pin
- flat
- Control Type
- without lockable test button
- Contacts Type And Composition
- 2 NO
- Device Short Name
- RPF
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
Contacts Materialsilver tin oxide
Product Or Component TypeDIN rail/panel mount relay
Series NamePower
Load Current25 A 28 V DC || 30 A 250 V AC
[Ithe] Conventional Enclosed Thermal Current25 A -40-55 °C relays side by side without a gap || 30 A -40-55 °C 13 mm gap between two relays
