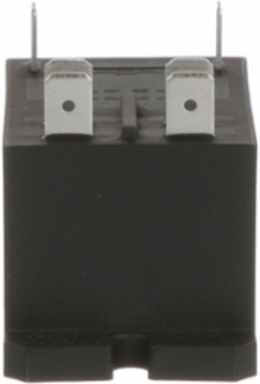

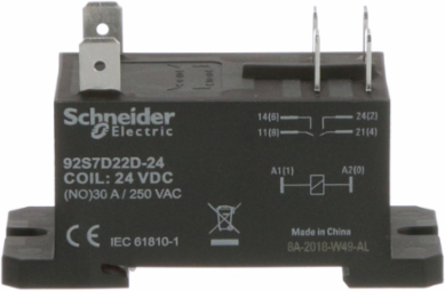

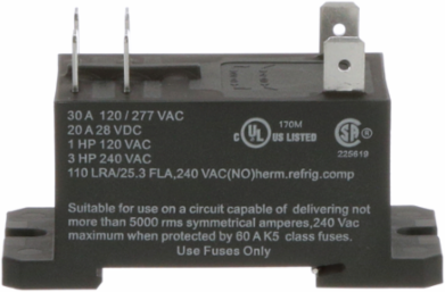

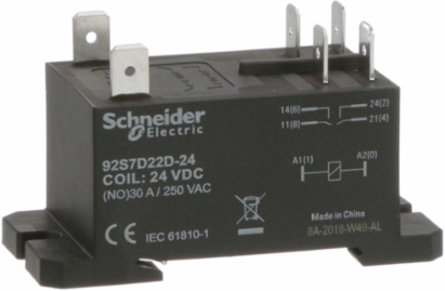

Schneider Electric 92S7D22D-24 Power Relay, DPST-NO, class F coil insulation, DIN rail and panel mount cover, 30A, 24V DC, 2NO
- MPN: 92S7D22D-24
- PPN: SCH-92S7D22D-24
CAD
$29.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 92 series, power relay offers a small package size and features Class F insulation for a maximum coil temperature of 155°C (311°F), which is ideal for elevated temperature applications. Contact rating of 30A at 277VAC and motor rating of 1hp at 120VAC , 3hp at 240VAC with coil voltage of 24VDC makes relay to be an ideal choice for any kind of automation needs. DPST-NO contact configuration gives simultaneous control of separate circuits. This power relay meets UL 508 spacing and are directly DIN mounted. Panel mount cover allows to mount relay directly onto DIN rail or panel and provides flexibility to accommodate last minute design changes. Sealed vented construction helps to resist dust and debris in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 1.0 hp 120 V AC 50/60 Hz3 hp 240 V AC 50/60 Hz |
|---|---|
| Maximum Switching Voltage | 300 V AC/DC UL250 V AC/DC IEC |
| Maximum Switching Capacity | 7500 VA/700 W AC/DC 13 mm gap between two relays6250 VA/700 W AC/DC relays side by side without a gap |
|---|---|
| Minimum Switching Capacity | 6000 mW 500 mA / 12 V NO |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Support | DIN rail, panel mounted |
| Certificate Agency | UL Listed, CSA, CE |
| Drop-out Voltage Threshold | >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.14345087572566453 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.7 kg CO2 eq., 0.7373822709606128 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Material | silver alloy contacts |
| Dielectric Strength | 4000 V AC between coil and contact1500 V AC between contacts2000 V AC between poles |
| Electrical Insulation Class | class F coil |
| Power Consumption In W | 1.36-1.87 W DC |
| Product Or Component Type | power relay |
| Returnability | Yes |
| Software Version | v6.2.2 |
| Switch Function | DPST |
| Voltage Range | 0.8...1.1 Un AC/DC |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal with contact rating of 30A at 277V AC and coil voltage at 240V AC with a maximum temperature of 155°C in 30% use rate during 10 years in inudtrial applications. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; China, CN |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 64 |
| Package Weight(Lbs) | 92.5 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Vibration Resistance | +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)3 gn 35-150 Hz) |
| [Ie] Rated Operational Current | 30 A at 277 V AC (NO) conforming to UL20 A at 28 V DC (NO) (on resistive load) conforming to UL, 110 A at 240 V AC (NO) (full load) conforming to UL, 10 A at 120 V AC (NO) (tungsten filament) conforming to UL6 A at 250 V AC (NO) (tungsten filament) conforming to UL, 30 A at 250 V AC (NO) conforming to IEC, 25 A at 28 V DC (NO) conforming to IEC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.06532547886414948, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0003998474115071522, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 28 kg CO2 eq., 28.31236999000764 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 2 NO |
| Electrical Durability | 100000 cycles resistive25000 cycles tungsten |
| Mechanical Durability | 5000000 cycles |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Legacy |
| Shock Resistance | 10 gn in operation30 gn not in operation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Pep Code | ENVPEP1311004EN |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410050 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 29.258928462969575 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP1311004EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1311004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | power relay |
|---|
| Range Of Product | Legacy |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand Duration | 1.2/50 µs |
|---|
Input Attributes
| Input Current | 30 A |
|---|---|
| Input Voltage | 24 V DC |
| Input Resistance | 350 Ohm |
|---|
