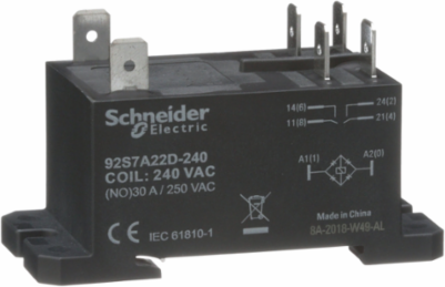

Schneider Electric 92S7A22D-240 Power relay, SE Relays, DPST-NO, 30A, 240 VAC, DIN rail and panel mount cover, class F insulation
- MPN: 92S7A22D-240
- PPN: SCH-92S7A22D-240
CAD
$31.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 92 series, power relay offers a small package size and features Class F insulation for a maximum coil temperature of 155°C (311°F), which is ideal for elevated temperature applications. Contact rating of 30A at 277VAC and motor rating of 1hp at 120VAC , 3hp at 240VAC with coil voltage of 240VAC makes relay to be an ideal choice for any kind of automation needs. DPST-NO contact configuration gives simultaneous control of separate circuits. This power relay meets UL 508 spacing and are directly DIN mounted. Panel mount cover allows to mount relay directly onto DIN rail or panel and provides flexibility to accommodate last minute design changes. Sealed vented construction helps to resist dust and debris in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Complementary Attributes
- Maximum Horse Power Rating
- 1.0 hp 120 V AC 50/60 Hz3 hp 240 V AC 50/60 Hz
- Maximum Switching Voltage
- 300 V AC/DC UL250 V AC/DC IEC
Maximum Switching Capacity7500 VA/700 W AC/DC 13 mm gap between two relays6250 VA/700 W AC/DC relays side by side without a gap
Minimum Switching Capacity6000 mW 500 mA / 12 V NO
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- DIN rail, panel mounted
- Certificate Agency
- UL Listed, CSA, CE
- Drop-out Voltage Threshold
- >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.14345087572566453
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.7373822709606128
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Contacts Material
- silver alloy contacts
- Dielectric Strength
- 4000 V AC between coil and contact1500 V AC between contacts2000 V AC between poles
- Electrical Insulation Class
- class F coil
- Power Consumption In Va
- 3.2-4.4 VA AC
- Product Or Component Type
- power relay
- Returnability
- Yes
- Software Version
- v6.2.2
- Switch Function
- DPST
- Voltage Range
- 0.8...1.1 Un AC/DC
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal with contact rating of 30A at 277V AC and coil voltage at 240V AC with a maximum temperature of 155°C in 30% use rate during 10 years in inudtrial applications.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 64
- Package Weight(Lbs)
- 92.5 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Vibration Resistance+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)3 gn 35-150 Hz)
[Ie] Rated Operational Current30 A at 277 V AC (NO) conforming to UL20 A at 28 V DC (NO) (on resistive load) conforming to UL, 96 A at 240 V AC (NO) (full load) conforming to UL, 10 A at 120 V AC (NO) (tungsten filament) conforming to UL6 A at 250 V AC (NO) (tungsten filament) conforming to UL, 30 A at 250 V AC (NO) conforming to IEC, 25 A at 28 V DC (NO) conforming to IEC
Carbon Footprint Of The Distribution Phase [A4]0.06532547886414948, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0003998474115071522, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]28 kg CO2 eq., 28.31236999000764
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition2 NO
Electrical Durability100000 cycles resistive25000 cycles tungsten
Mechanical Durability5000000 cycles
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance10 gn in operation30 gn not in operation
Sustainable PackagingYes
Total Lifecycle Carbon Footprint29 kg CO2 eq.
Pep CodeENVPEP1311004EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 29.258928462969575
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP1311004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1311004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Surge Protection And Filtering Attributes
- Surge Withstand Duration
- 1.2/50 µs
Input Attributes
- Input Current
- 30 A
- Input Voltage
- 240 V AC
Input Resistance17000 Ohm
