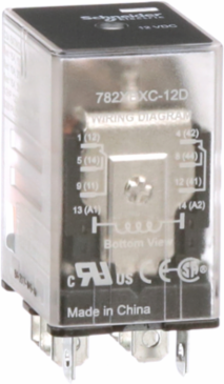

Schneider Electric 782XBXC-12D Power relay, SE Relays, 15A, DPDT, 12 VDC, clear cover
Schneider Electric 782XBXC-12D Power relay, SE Relays, 15A, DPDT, 12 VDC, clear cover
- MPN: 782XBXC-12D
- PPN: SCH-782XBXC-12D
- UNSPSC: 39122324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$25.88/ EA
Description
The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 12VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Specifications
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC 50/60 Hz, 1 hp 277 V AC 50/60 Hz
- IE Rated Operational Current
- 15 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
Maximum Switching Voltage300 V AC UL, 300 V AC CSA, 250 V AC IEC
Minimum Switching Current10 mA 17 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles, 1500 V AC between contacts
- Operating Time
- 20 ms operating, 20 ms tripping
- IE Rated Operational Current
- 15 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.05806219686162625
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.5 kg CO2 eq., 0.49500817014654386
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option Id
- STANDARD
- Electrical Durability
- 100000 cycles resistive
- Power Consumption In VA
- 1.1-1.1 VA AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Shock Resistance
- 15 gn in operation
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Connections Terminals
- Faston terminals
- Pep Code
- ENVPEP2403024EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Product Kit Identifier
- N
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Vibration Resistance+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), 3 gn 35-150 Hz)
Carbon Footprint Of The Distribution Phase A40.0047075917520425364, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.006040679548696667, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B613 kg CO2 eq., 12.562707344632765
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Package Weight Lbs36.287 g
Power Consumption In W0.85-0.85 W DC
Product Or Component Typepower relay
ReturnabilityYes
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Relationship TypeCompatible relationship
Pep Verification Date2024-06-09
PSR VersionPSR-0005-ed2-2016 03 29
Functional Unit Description782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
Product ManagerZHEN YIN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 13.126525982941676
- Environmental Disclosure
- ENVPEP2403024EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- PSR Version
- PSR-0005-ed2-2016 03 29
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2403024EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Input Attributes
- Input Current
- 15 A
Input Voltage12 V DC
