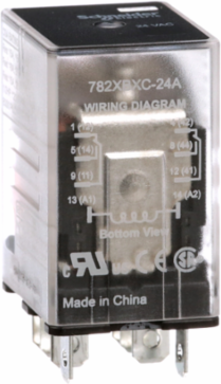

Schneider Electric 782XBXC-24A Power relay, SE Relays, 15A, DPDT, 24 VAC, clear cover
- MPN: 782XBXC-24A
- PPN: SCH-782XBXC-24A
CAD
$25.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 27.3 mm |
|---|
Complementary Attributes
| Maximum Switching Voltage | 300 V AC UL, 300 V AC CSA250 V AC IEC |
|---|---|
| Minimum Switching Current | 10 mA 17 V |
| Maximum Horse Power Rating | 0.5 hp 120 V AC 50/60 Hz1 hp 277 V AC 50/60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 2000 V AC between coil and contact, 2000 V AC between poles1500 V AC between contacts |
| Vibration Resistance | +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)3 gn 35-150 Hz) |
| [Ie] Rated Operational Current | 15 A at 28 V DC conforming to CSA15 A at 28 V DC (NO) conforming to IEC7.55 A at 28 V DC (NC) conforming to IEC, 15 A at 120...277 V AC conforming to UL15 A at 28 V DC conforming to UL15 A at 120/150 V AC conforming to CSA10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC7.55 A at 250 V AC (NC) conforming to IEC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0047075917520425364, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.006040679548696667, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 13 kg CO2 eq., 12.562707344632765 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2403024EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Material | silver alloy, gold flashed |
| Electrical Durability | 100000 cycles resistive |
| Mechanical Durability | 10000000 cycles |
| Power Consumption In Va | 1.1-1.1 VA AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Legacy |
| Shock Resistance | 15 gn in operation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 13 kg CO2 eq. |
| Pep Code | ENVPEP2403024EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Unit | 1 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 34.8 mm |
| Connections - Terminals | Faston terminals |
| Package Weight(Lbs) | 36 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operating Time | 20 ms operating, 20 ms tripping |
| Certificate Agency | UL, CE, CSA |
| Drop-out Voltage Threshold | >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.05806219686162625 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.49500817014654386 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 2 NO + 2 NC |
| Local Signalling | flag |
| Mounting Support | socket |
| Power Consumption In W | 0.85-0.85 W DC |
| Product Or Component Type | power relay |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Switch Function | DPDT |
| Voltage Range | 0.8...1.1 Un AC/DC |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | 782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards. |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Width Nominal | 21 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410050 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 13.126525982941676 |
| Environmental Disclosure | ENVPEP2403024EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2403024EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2403024EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | power relay |
|---|
| Range Of Product | Legacy |
|---|
Input Attributes
| Input Current | 15 A |
|---|---|
| Input Voltage | 24 V AC |
| Input Resistance | 177 Ohm |
|---|
